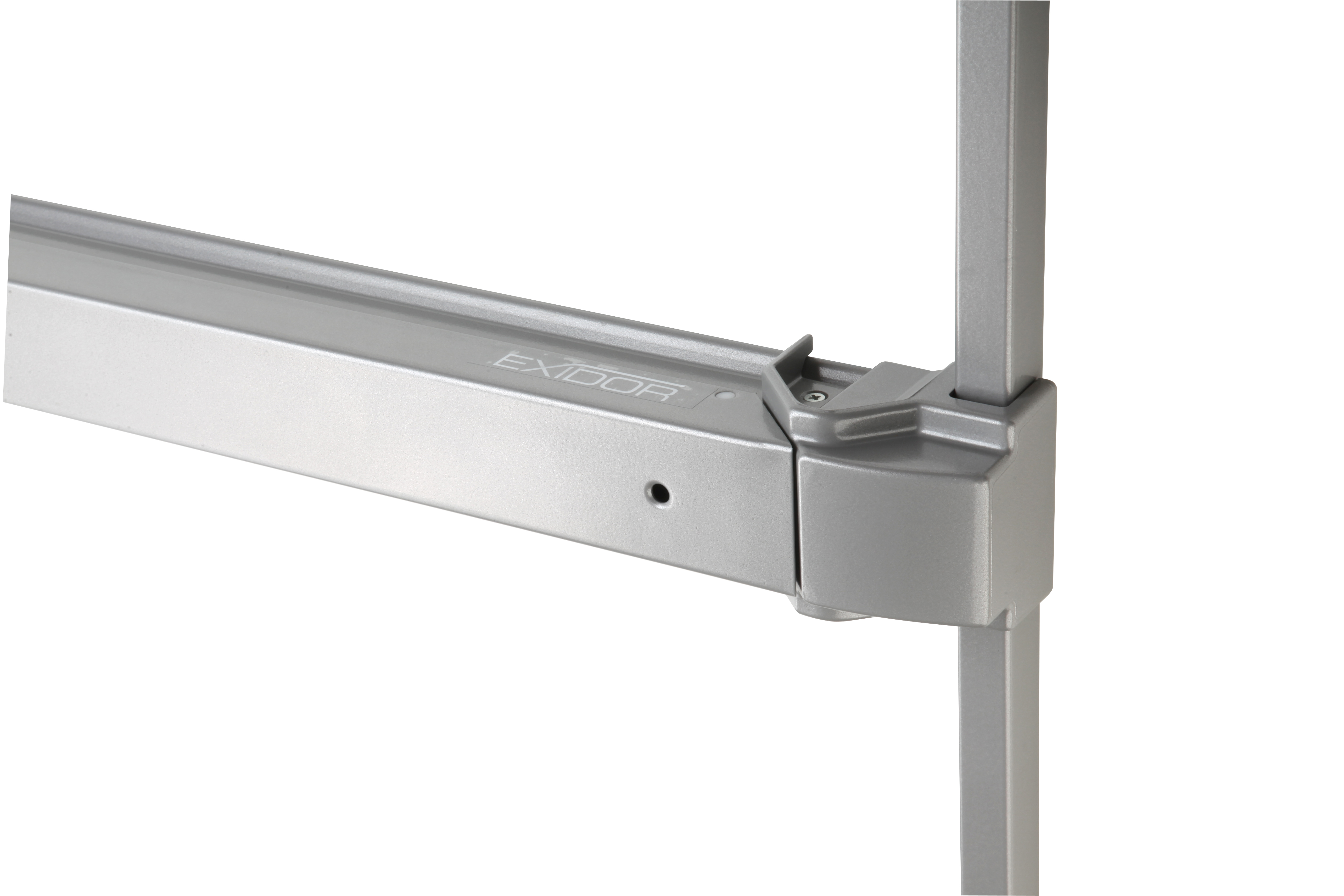

Vertical Pullman latches with two point locking for panic escape, gives smooth release and quieter closing.
Tested with a range of outside access devices, giving entry into building without compromising ability to escape.
Options available with microswitching, alarm or dogging to give specialaist solutions.
Keeps available for alternative frame arrangements
402 suitable for door widths between 692 to 900mm / 403 suitable for door widths between 872 and 1200
Name | Value |
---|---|
Brand | Exidor |
Activation | Touch Bar |
Bolt Style | Vertical Pullman Latches |
Cylinder Detail | N/A |
Cylinder Included | No |
Dimensions (mm) | 75 X 160 X 1250 |
Door Height (mm) | 2440 |
Door Opening | Outward |
Door Type | Metal, Plain Meeting Stile Double Either Leaf, Rebated Double Inactive Leaf, Single, Timber |
Durability | 200000 |
Escape Hardware Feature | Surface Mounted |
Escape Hardware Function | Panic Hardware |
Fire Door Approval | Yes |
Fire Rated | Steel & Timber |
Fire Rated Metal | FD120, FD240 |
Fire Rated Timber | FD120, FD30, FD60 |
Fixings | Fixings Supplied |
Handing | Universal |
Keep Detail | Standard |
Key Retention | N/A |
Locking Points | 2 |
Max Door Height (mm) | 2440 |
Max Door Weight (kg) | 200kg |
Mounting Method | Surface Mounted |
Operator Detail | Touch |
Product Subtitle | Introducing The Exidor 402 And 403 Touch Bar, Featuring Vertical Pullman Latches For Enhanced Two-point Locking. Perfect For Sports Halls And Public Areas, This Reliable Panic Exit Solution Is Easy To Operate And Comes With Keeps And Fixings. Available In Sizes For Doors Up To 1200mm Wide. Safety Meets Convenience! |
Projection (mm) | 62mm |
Standards | CE, Certifire, EN 1125, EN 1634-1, UKCA |
Style | Panic |
Suitable Door Type | Steel & Timber |
Feature | Surface Mounted |
Product | Product ID | Attributes |
---|---|---|
402 and 403 Touch bar two point locking with vertical latches | 15030020 | Alarmed: No Dogged: No Finish: Silver Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15030030 | Alarmed: No Dogged: No Finish: Silver Max Door Width (mm): 1200mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15030041 | Alarmed: No Dogged: No Finish: Brass Max Door Width (mm): 1200mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15030140 | Alarmed: No Dogged: No Finish: Silver Max Door Width (mm): 900mm Micro Switched: Yes |
402 and 403 Touch bar two point locking with vertical latches | 15030142 | Alarmed: No Dogged: No Finish: Jet Black (Ral 9005) Max Door Width (mm): 900mm Micro Switched: Yes |
402 and 403 Touch bar two point locking with vertical latches | 15030520 | Alarmed: Yes Dogged: No Finish: Silver Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15030530 | Alarmed: Yes Dogged: No Finish: Silver Max Door Width (mm): 1200mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15031020 | Alarmed: No Dogged: No Finish: Gold Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15032020 | Alarmed: No Dogged: No Finish: White Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15034020 | Alarmed: No Dogged: No Finish: Black Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15035020 | Alarmed: No Dogged: No Finish: Brass Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15036020 | Alarmed: No Dogged: No Finish: Stainless Steel Plate Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15036030 | Alarmed: No Dogged: No Finish: Stainless Steel Plate Max Door Width (mm): 1200mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15036520 | Alarmed: Yes Dogged: No Finish: Stainless Steel Plate Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15037020 | Alarmed: No Dogged: No Finish: Polished Steel Plate Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15092257 | Alarmed: No Dogged: No Finish: Silver Max Door Width (mm): 1200mm Micro Switched: Yes |
402 and 403 Touch bar two point locking with vertical latches | 15092258 | Alarmed: No Dogged: No Finish: Stainless Steel Plate Max Door Width (mm): 1200mm Micro Switched: Yes |
402 and 403 Touch bar two point locking with vertical latches | 15092259 | Alarmed: No Dogged: Yes Finish: Silver Max Door Width (mm): 1200mm Micro Switched: Yes |
402 and 403 Touch bar two point locking with vertical latches | 15130020 | Alarmed: No Dogged: Yes Finish: Silver Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15130030 | Alarmed: No Dogged: Yes Finish: Silver Max Door Width (mm): 1200mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15136020 | Alarmed: No Dogged: Yes Finish: Stainless Steel Plate Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15136030 | Alarmed: No Dogged: Yes Finish: Stainless Steel Plate Max Door Width (mm): 1200mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15900146 | Alarmed: No Dogged: No Finish: Steel Blue (Ral 5011) Max Door Width (mm): 900mm Micro Switched: No |
402 and 403 Touch bar two point locking with vertical latches | 15900147 | Alarmed: No Dogged: No Finish: Brown Max Door Width (mm): 900mm Micro Switched: No |
