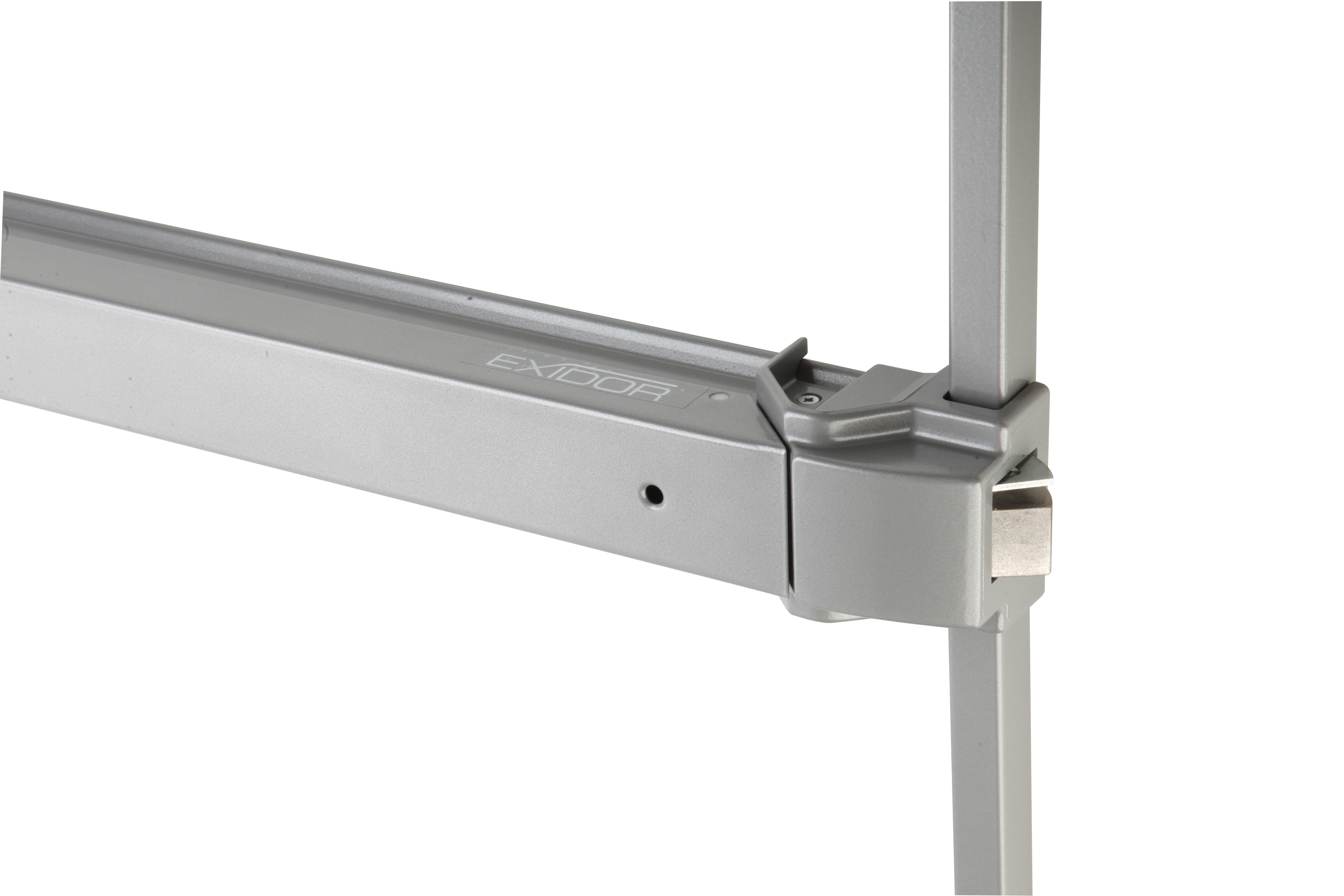

404 and 405 Touch bar three point locking with vertical latches

Exidor panic touch bar with central latch and vertical Pullman latches giving 3 locking points is ideal for sports halls, public access areas, and front-of-house applications. Vertical Pullman latches locate into threshold and overhead frame in a smooth and quiet manner. The unit is operated by pressing the bar into the door face retracting the latches and releasing the bar returning the latch bolts to the rest position. Two standard sizes to suit doors up to 900mm (404 model) or 1200mm (405 model) wide. Microswitch, alarm, and holdback dogging options available but note thatthe hold back is not suitable for fire doors. Certified in compliance with EN 1125 and suitable for timber doors up to FD120 and FD120/FD240 metal doors.
  • Brochures (for Webshop/AEM) S3

  • Vertical Pullman latches with three point locking for quiet closing

    Range of compatable outside access devices gives entry and perimeter security without compromising ability to escape

    Supplied with keeps and fixings to suit timber and steel doors

    Solutions available with microswith, hold back (dogging) or alarm for specialist applications

    Keeps available for alternative frame arrangements

  • NameValue
    BrandExidor
    ActivationTouch Bar
    Bolt StyleVertical Pullman Latches
    Cylinder IncludedNo
    Dimensions (mm)75 X 160 X 1250
    Door Height (mm)2440
    Door OpeningOutward
    Door TypeMetal, Single, Timber
    Durability200000
    Escape Hardware FeatureSurface Mounted
    Escape Hardware FunctionPanic Hardware
    Fire Door ApprovalYes
    Fire RatedSteel & Timber
    Fire Rated MetalFD120, FD240
    Fire Rated TimberFD120, FD30, FD60
    FixingsFixings Supplied
    HandingUniversal
    Keep DetailStandard
    Key RetentionNo
    Locking Points3
    Max Door Height (mm)2440
    Max Door Weight (kg)200kg
    Mounting MethodSurface Mounted
    Operation TypePush
    Operator DetailTouch
    Product SubtitleIntroducing The Exidor 404 And 405 Touch Bar, Designed For Safety In Sports Halls And Public Spaces. Featuring Vertical Pullman Latches And A Three-point Locking System, It Ensures Secure Access. Available For Doors Up To 1200mm Wide, It Comes Complete With Keeps And Fixings For Easy Installation.
    Projection (mm)62mm
    StandardsCE, Certifire, EN 1125, EN 1634-1, UKCA
    StylePanic
    Suitable Door TypeSteel & Timber
    Unit TypePanic
    FeatureSurface Mounted
    FunctionPanic Hardware
  • ProductProduct IDAttributes
    404 and 405 Touch bar three point locking with vertical latches15030040
    Alarmed: No
    Dogged: No
    Finish: Silver
    Max Door Width (mm): 900mm
    Micro Switched: No
    404 and 405 Touch bar three point locking with vertical latches15030042
    Alarmed: No
    Dogged: No
    Finish: Gold
    Max Door Width (mm): 900mm
    Micro Switched: No
    404 and 405 Touch bar three point locking with vertical latches15030050
    Alarmed: No
    Dogged: No
    Finish: Silver
    Max Door Width (mm): 1200mm
    Micro Switched: No
    404 and 405 Touch bar three point locking with vertical latches15030073
    Alarmed: Yes
    Dogged: No
    Finish: Silver
    Max Door Width (mm): 900mm
    Micro Switched: No
    404 and 405 Touch bar three point locking with vertical latches15030075
    Alarmed: Yes
    Dogged: No
    Finish: Passivated and Silver
    Max Door Width (mm): 1200mm
    Micro Switched: No
    404 and 405 Touch bar three point locking with vertical latches15030076
    Alarmed: Yes
    Dogged: No
    Finish: Stainless Steel Plate
    Max Door Width (mm): 1200mm
    Micro Switched: No
    404 and 405 Touch bar three point locking with vertical latches15036040
    Alarmed: No
    Dogged: No
    Finish: Stainless Steel Plate
    Max Door Width (mm): 900mm
    Micro Switched: No
    404 and 405 Touch bar three point locking with vertical latches15130040
    Alarmed: No
    Dogged: Yes
    Finish: Silver
    Max Door Width (mm): 900mm
    Micro Switched: No
    404 and 405 Touch bar three point locking with vertical latches15130050
    Alarmed: No
    Dogged: Yes
    Finish: Silver
    Max Door Width (mm): 1200mm
    Micro Switched: No
    404 and 405 Touch bar three point locking with vertical latches15903111
    Alarmed: No
    Dogged: No
    Finish: Stainless Steel Plate
    Max Door Width (mm): 1200mm
    Micro Switched: Yes
    404 and 405 Touch bar three point locking with vertical latches15903143
    Alarmed: No
    Dogged: No
    Finish: Silver
    Max Door Width (mm): 900mm
    Micro Switched: Yes
    404 and 405 Touch bar three point locking with vertical latches15903144
    Alarmed: No
    Dogged: No
    Finish: Stainless Steel Plate
    Max Door Width (mm): 900mm
    Micro Switched: Yes
