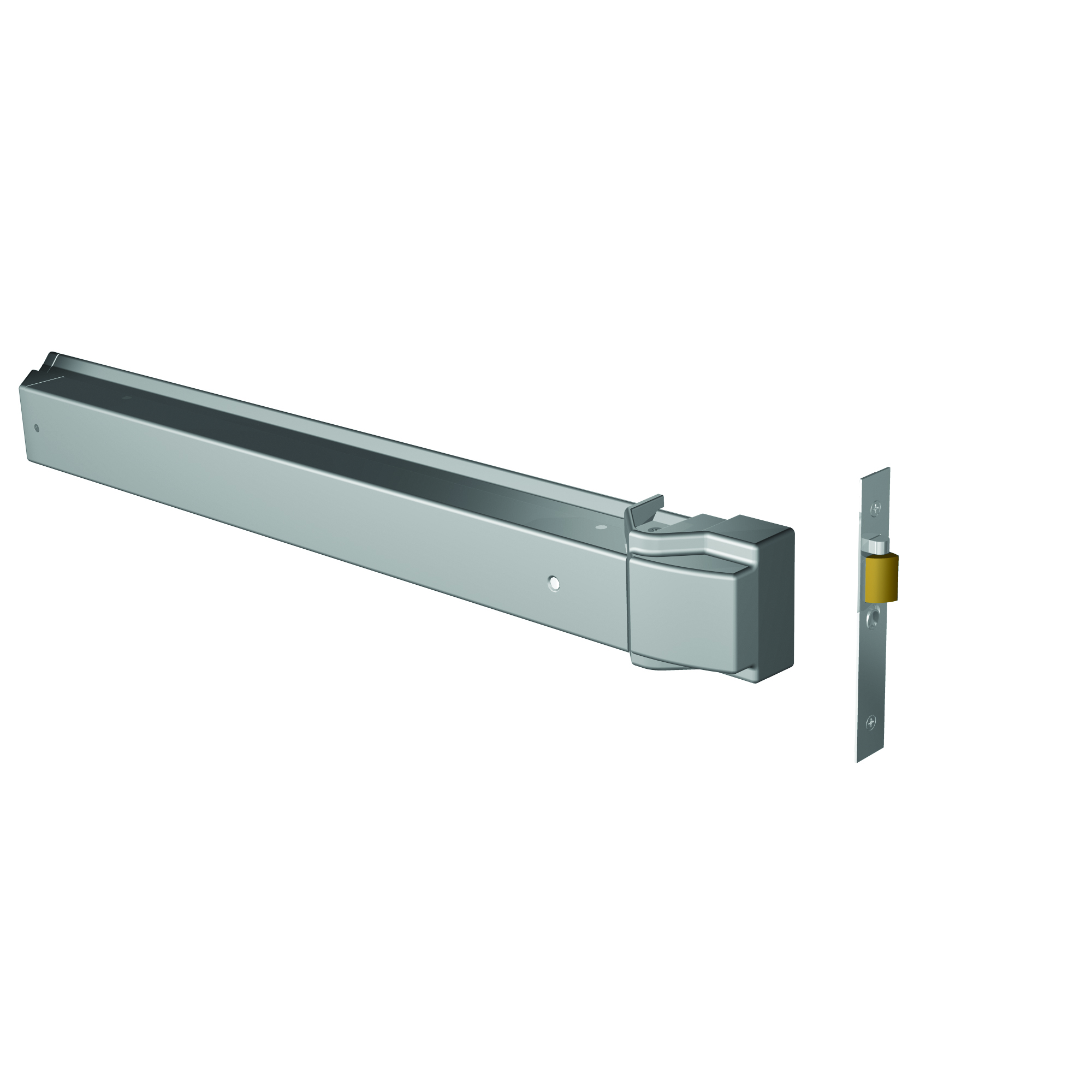

420 and 421 Touch bar mortice actuator

Exidor single point locking touch bar panic latch with a sleek design combined with smooth operation to give a solution ideal for use in front of the house or other public areas. The unit is operated by pressing the bar into the door face retracting the latch bolt and releasing the bar returning the latch bolt to the rest position. The touch bar is available in two standard sizes to suit doors up to 900mm or 1200mm wide (Bar widths are set sizes with other sizes available on request). Microswitch, alarm, and holdback dogging options are available but note dogging (holdback) variants are not suitable for fire doors. Certified in compliance with EN 1125 and suitable for timber doors up to FD120 and FD120/FD240 metal doors.

Exidor panic touch bar with two vertical Pullman latches, ideal for sports halls, public access areas, and front-of-house applications. The unit is operated by pressing the bar into the door face retracting the latches and releasing the bar returning the latch bolts to the rest position. Two standard sizes to suit doors up to 900mm or 1200mm wide (Bar widths are set sizes with other sizes available on request). Microswitch, alarm, and holdback dogging options available but note that dogging (holdback) is not suitable for fire doors. Certified in compliance with EN 1125 and suitable for timber doors up to FD120 and FD120/FD240 metal doors.

Exidor panic touch bar with central latch and vertical Pullman latches giving 3 locking points is ideal for sports halls, public access areas, and front-of-house applications. Vertical Pullman latches locate into threshold and overhead frame in a smooth and quiet manner. The unit is operated by pressing the bar into the door face retracting the latches and releasing the bar returning the latch bolts to the rest position. Two standard sizes to suit doors up to 900mm (404 model) or 1200mm (405 model) wide. Microswitch, alarm, and holdback dogging options available but note thatthe hold back is not suitable for fire doors. Certified in compliance with EN 1125 and suitable for timber doors up to FD120 and FD120/FD240 metal doors.

Exidor panic touch bar with horizontal Pullman latches giving 2 locking points is ideal for sports halls, public access areas, and front-of-house applications. Horizontal Pullman latches locate into the side frame so no need to drill floor or transom. The unit is operated by pressing the bar into the door face retracting the latches and releasing the bar returning the latch bolts to the rest position. Two standard sizes to suit doors up to 900mm (416 model) or 1200mm (417 model) wide. Microswitch, alarm, and holdback dogging options available but note that the hold back is not suitable for fire doors. Certified in compliance with EN 1125 and suitable for timber doors up to FD120 and FD120/FD240 metal doors.

Exidor panic touch bar with central latch and upper/lower horizontal Pullman latches giving 3 locking points is ideal for sports halls, public access areas, and front-of-house applications. Horizontal Pullman latches locate into the side frame so no need to drill floor or transom. The unit is operated by pressing the bar into the door face retracting the latches and releasing the bar returning the latch bolts to the rest position. Two standard sizes to suit doors up to 900mm (418 model) or 1200mm (419 model) wide. Microswitch, alarm, and holdback dogging options available but note that the hold back is not suitable for fire doors. Certified in compliance with EN 1125 and suitable for timber doors up to FD120 and FD120/FD240 metal doors.
