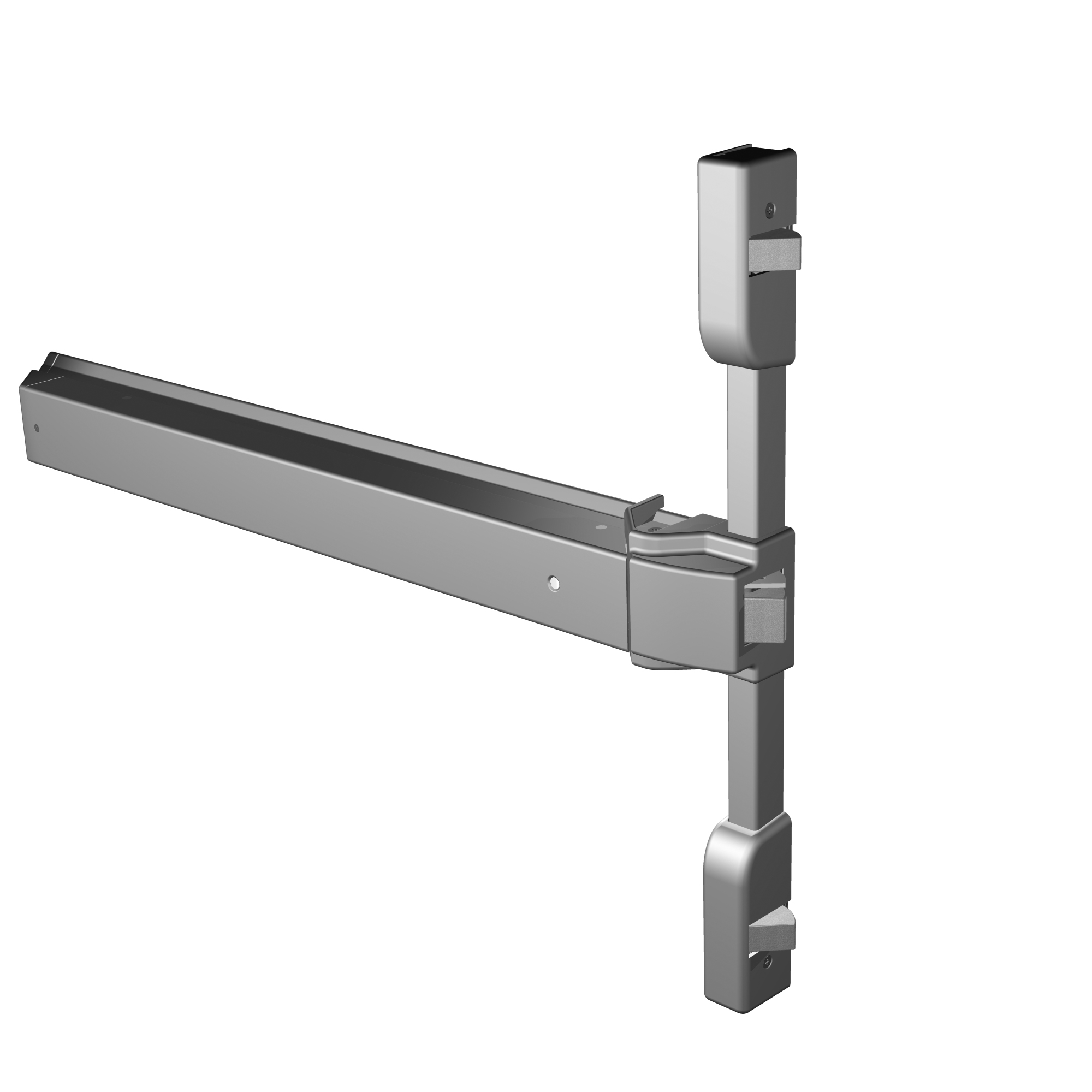

418 and 419 Touch bar three point locking with horizontal latches

Exidor panic touch bar with central latch and upper/lower horizontal Pullman latches giving 3 locking points is ideal for sports halls, public access areas, and front-of-house applications. Horizontal Pullman latches locate into the side frame so no need to drill floor or transom. The unit is operated by pressing the bar into the door face retracting the latches and releasing the bar returning the latch bolts to the rest position. Two standard sizes to suit doors up to 900mm (418 model) or 1200mm (419 model) wide. Microswitch, alarm, and holdback dogging options available but note that the hold back is not suitable for fire doors. Certified in compliance with EN 1125 and suitable for timber doors up to FD120 and FD120/FD240 metal doors.
  • Brochures (for Webshop/AEM) S3

  • Horizontal Pullman latches with three point locking for quiet closing and no need to drill the floor

    Range of compatable outside access devices gives entry and perimeter security without compromising ability to escape

    Supplied with keeps and fixings to suit timber and steel doors

    Solutions available with microswith, hold back (dogging) or alarm for specialist applications

    Keeps available for alternative frame arrangements

  • NameValue
    BrandExidor
    ActivationTouch Bar
    AlarmedNo
    Bolt StyleHorizontal Pullman Latches
    Cylinder DetailN/A
    Dimensions (mm)75 X 160 X 1250
    DoggedNo
    Door Height (mm)2440
    Door OpeningOutward
    Door TypeMetal, Rebated Double Active Leaf, Single, Timber
    Durability200000
    Escape Hardware FunctionPanic Hardware
    Fire Door ApprovalYes
    Fire RatedSteel & Timber
    Fire Rated MetalFD120, FD240
    Fire Rated TimberFD120, FD30, FD60
    FixingsFixings Supplied
    HandingUniversal
    Keep DetailStandard
    Key RetentionN/A
    Locking Points3
    Max Door Height (mm)2440
    Max Door Thickness (mm)N/A
    Max Door Weight (kg)200kg
    Mounting MethodSurface Mounted
    Operator DetailTouch
    Product SubtitleIntroducing The Exidor 418 And 419 Touch Bar, Designed For Safety And Ease Of Use In Sports Halls And Public Areas. Featuring Three-point Locking With Horizontal Pullman Latches, It Ensures Secure Access. Available In Two Sizes For Doors Up To 1200mm, It Comes With Keeps And Fixings For Effortless Installation.
    Projection (mm)62mm
    StandardsCE, Certifire, EN 1125, EN 1634-1, UKCA
    StylePanic
    Suitable Door TypeSteel & Timber
  • ProductProduct ID
    418 and 419 Touch bar three point locking with horizontal latches15902065
    418 and 419 Touch bar three point locking with horizontal latches15902066
    418 and 419 Touch bar three point locking with horizontal latches15902070
    418 and 419 Touch bar three point locking with horizontal latches15902325
