• Tested to 200,000 cycles

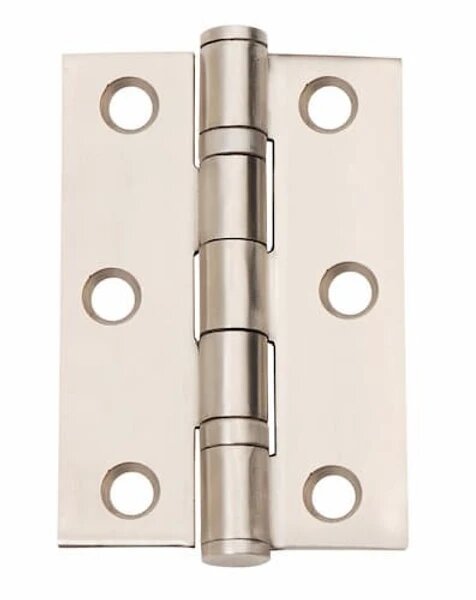

    Five knuckle ball bearing hinge

    Template drilled for consistency and accuracy

    Equipped with ball bearings for reduced friction and increased durability

    Ideal for use with door closers

  • NameValue
    BrandUNION
    Durability200000
    Fire Rated TimberFD30, FD60
    Material201 Stainless Steel
    Max Door Weight (kg)120kg
    Product SubtitleIntroducing The CE Grade 13 Butt Hinge, Designed For Heavy-duty Doors Up To 120kg. This Durable Hinge Features A Five Knuckle Ball Bearing For Smooth Operation And Longevity. With Precision Drilling For Accuracy, It’s Perfect For Doors With Closers And Is Suitable For FD30 And FD60 Fire Doors. Trust In Its Reliability!
    StandardsCertifire, EN 1935, UKCA
    Number of cycles tested to200,000
  • ProductProduct IDAttributes
    CE Grade 13 butt hingeDX40614
    Dimensions (mm): 102 x 76 x 3
    Finish: Satin Stainless Steel
    Pack Qty: 3
    Package Type: Euro Slot
    Style: Standard
    CE Grade 13 butt hingeDX40614R
    Dimensions (mm): 102 x 76 x 3
    Finish: Satin Stainless Steel
    Pack Qty: 3
    Package Type: Euro Slot
    Style: Radius
    CE Grade 13 butt hingeDX40615
    Dimensions (mm): 102 x 76 x 3
    Finish: Polished Stainless Steel
    Pack Qty: 3
    Package Type: Euro Slot
    Style: Standard
    CE Grade 13 butt hingeDX40616
    Dimensions (mm): 102 x 76 x 3
    Finish: Polished Electro Brass
    Pack Qty: 3
    Package Type: Euro Slot
    Style: Standard
    CE Grade 13 butt hingeXL000837
    Dimensions (mm): 102 x 76 x 3
    Finish: Polished Stainless Steel
    Pack Qty: 2
    Package Type: Boxed
    Style: Standard
