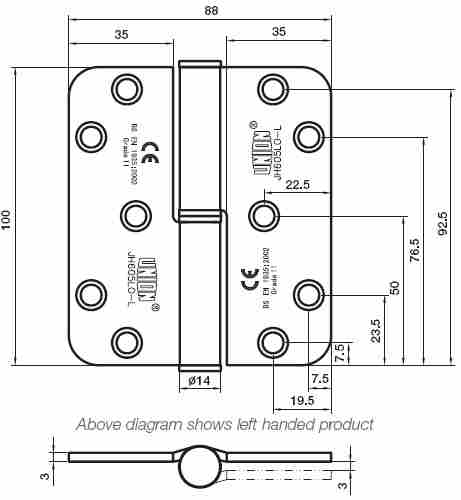

High performance PowerLOAD 605 grade 13 straight leaf, lift-off hinges

The CE grade 13 butt hinge is for use on heavy duty doors up to 120kg. It has been developed with a five knuckle ball bearing hinge, with the ball bearings offering reduced friction and increased durability. The template is drilled for consistency and accuracy. This is an ideal hinge for doors with door closers. It has been tested to EN 1935 and is suitable for FD30 and FD60 fire doors.

The fire rated CE grade 13 hinge has been tested to 200,000 cycles. The hinge has ball bearings for reduced friction and increased durability, it is suitable for doors up to 120kg and is tested to EN 1935 and suitable for timber doors up to FD120 but an intumescent is essential for use on fire doors. Each hinge pack is supplied with 6 intumescent plates.

A highly durable UNION grade 13 bushed bearing hinge that features carbon steel and phosphorous bronze flanged bushed bearings to provide long life aswell as a fixed pin for improved cycling and durability. The PowerLOAD hinge family are virtually mainteance free and supplied with a 25-year guarantee, and are suitable for timber fire doors FD30 and FD60* making this hinge family ideal for environments where durability and reliability are paramount. *Intumescent protection must be used
