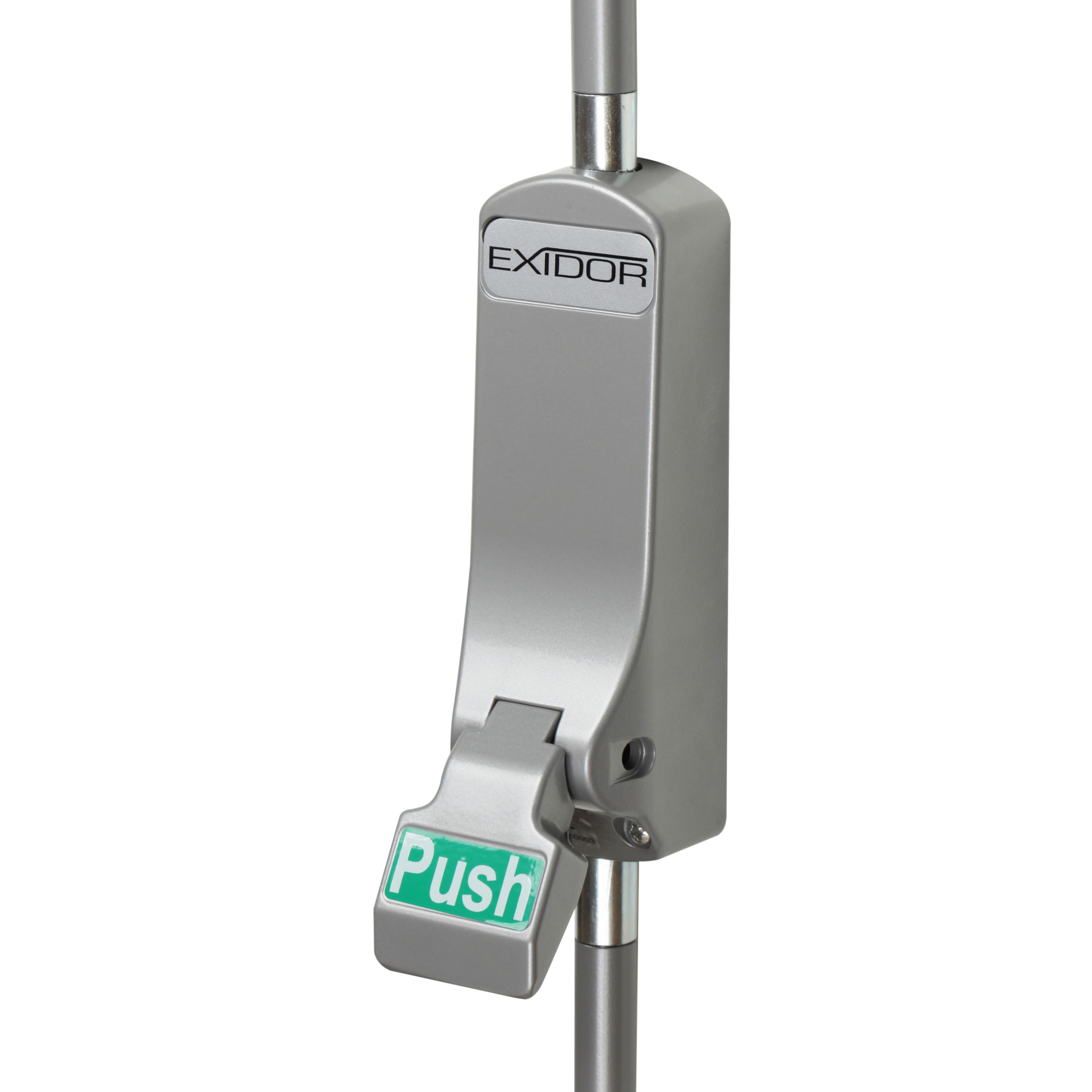

Exidor push pad emergency horizontal Pullman latch that is simple to install, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the latch bolts, releasing the pad returns the latch bolts to the rest position. Standard-size panic bolts are suitable for single doors up to 2440mm high. Special sizes are available on request.
Certified in compliance with EN 179 with suitability for timber doors up to FD120 and metal doors FD120/FD240. Indicate the required finish when ordering.
Pullman latches offers a smooth and quiet latching action
Horizontal latching action avoid awkward threshold or transom details
Easy to install emergency solution with upper and lower locking points
Supplied with timber or steel door keeps and fixings
Non handed
| Name | Value |
|---|---|
| Brand | Exidor |
| Activation | Push Pad |
| Alarmed | No |
| Bolt Style | Horizontal Pullman Latches |
| Cylinder Detail | N/A |
| Cylinder Included | No |
| Dimensions (mm) | 75 X 160 X 1250 |
| Dogged | No |
| Door Height (mm) | 2440 |
| Door Opening | Outward |
| Door Type | Metal, Rebated Double Inactive Leaf, Single, Timber |
| Durability | 200000 |
| Escape Hardware Feature | Double Door - Rebated, Single Door |
| Escape Hardware Function | Emergency Hardware |
| Fire Door Approval | Yes |
| Fire Rated Metal | FD120, FD240 |
| Fire Rated Timber | FD120, FD30, FD60, FD90 |
| Fixings | Fixings Supplied |
| Handing | Universal |
| Keep Detail | Standard |
| Key Retention | N/A |
| Locking Points | 2 |
| Max Door Height (mm) | 2440 |
| Max Door Weight (kg) | 200kg |
| Max Door Width (mm) | 1220 |
| Micro Switched | No |
| Mounting Method | Surface Mounted |
| Operation Type | Push |
| Operator Detail | Push Pad |
| Product Subtitle | Introducing The Exidor 307 Push Pad Emergency Horizontal Pullman Latch. This Easy-to-install Solution Features A Smooth And Quiet Latching Action, Perfect For Timber And Metal Doors. With Upper And Lower Locking Points, It Ensures Safety While Avoiding Awkward Thresholds. Certified For Reliability, It’s Your Ideal Emergency Exit Choice. |
| Projection (mm) | 83 |
| Standard | CE, EN 179, UKCA |
| Style | Push |
| Feature | Double Door - Rebated, Single Door |
| Product | Product ID |
|---|---|
| 307 Push pad emergency horiz pullman | 15000600 |
| 307 Push pad emergency horiz pullman | 15000608 |
Exidor emergency push pad shoot bolt for single doors, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the bolts, the bolts remain retracted until automatically released on closing of the door.
Certified in compliance with EN 179 with suitability for timber doors up to FD120 and metal doors FD120/FD240. Indicate the required finish when ordering.
Exidor emergency push pad shoot bolt for single doors, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the bolts, the bolts remain retracted until automatically released on closing of the door.
Certified in compliance with EN 179 with suitability for timber doors up to FD120 and metal doors FD120/FD240. Indicate the required finish when ordering.
Exidor emergency push pad latch that is simple to install, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the latch, releasing the pad returns the latch to the rest position.
Certified in compliance with EN 179 with suitability for timber doors up to FD120 and metal doors FD120/FD240.
Indicate the required finish when ordering.
Exidor emergency push pad with a mortice night latch, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the mortice lock latch, releasing the pad returns the mortice lock latch to the rest position.
Ideal for restricted access areas requiring key entry as a mortice lock offers more protection against abuse on the internal face. Certified in compliance with EN 179. Indicate the required finish when ordering.
