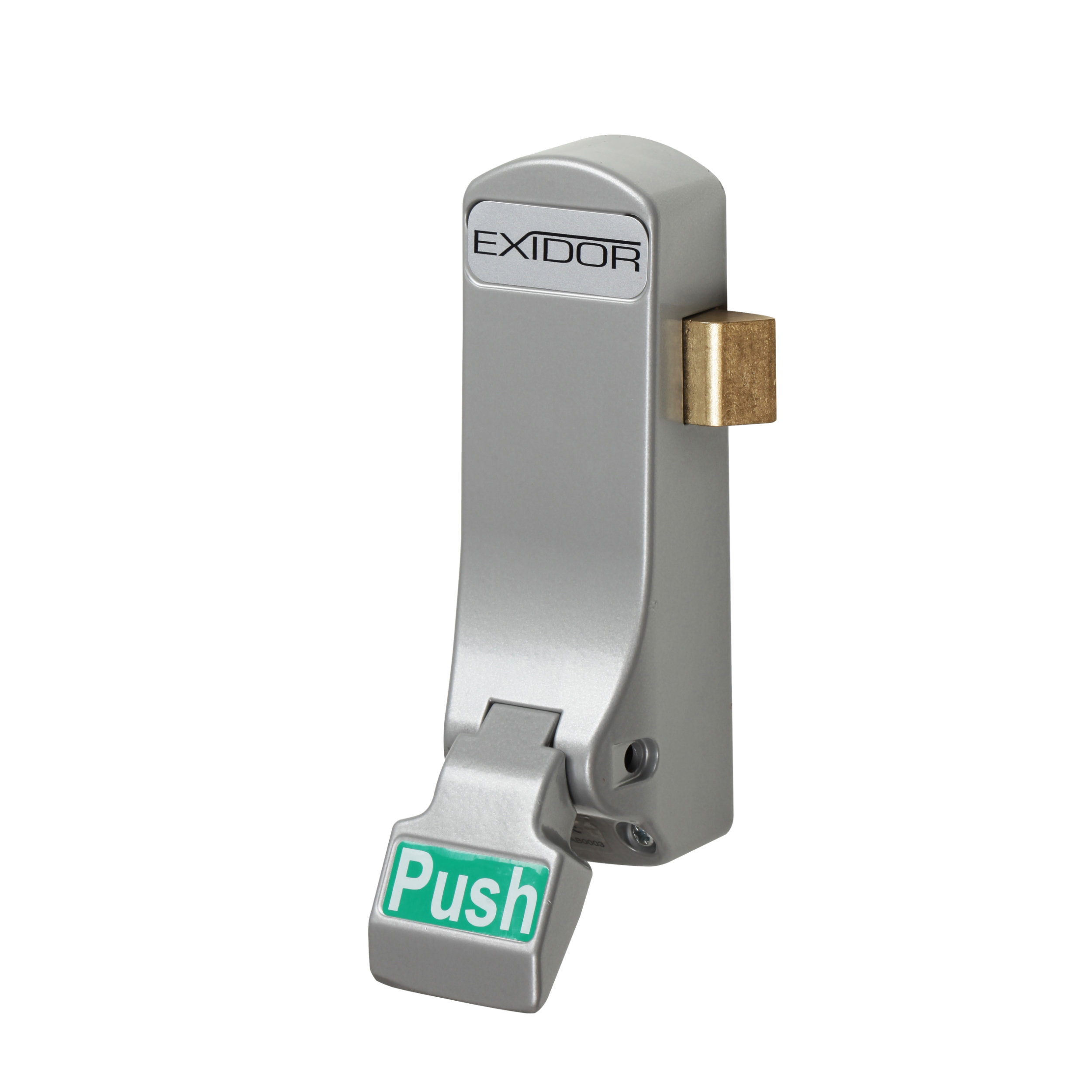

Exidor emergency push pad latch that is simple to install, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the latch, releasing the pad returns the latch to the rest position.
Certified in compliance with EN 179 with suitability for timber doors up to FD120 and metal doors FD120/FD240.
Indicate the required finish when ordering.
Single point surface mounted push pad latch unit
Includes an adaptor to connect to a rim cylinder (cylinder not included)
Keeps available for alternative frame arrangements and aluminium doors
General purpose emergency product where all users are familiar with operation, such as small offices or industrial units
Push pad design that is simple to install
| Name | Value |
|---|---|
| Brand | Exidor |
| Activation | Push Pad |
| Alarmed | No |
| Bolt Style | Latch |
| Cylinder Detail | N/A |
| Cylinder Included | No |
| Dimensions (mm) | 100 X 130 X 220 |
| Dogged | No |
| Door Height (mm) | 2440 |
| Door Opening | Outward |
| Door Type | Metal, Rebated Double Active Leaf, Single, Timber |
| Durability | 200000 |
| Escape Hardware Feature | Surface Mounted |
| Escape Hardware Function | Panic Hardware |
| Fire Door Approval | Yes |
| Fixings | Fixings Supplied |
| Key Retention | N/A |
| Locking Points | 1 |
| Max Door Height (mm) | 2440 |
| Max Door Thickness (mm) | 46 To 51 |
| Max Door Weight (kg) | 200kg |
| Max Door Width (mm) | 1220 |
| Micro Switched | No |
| Mounting Method | Surface Mounted |
| Operation Type | Push |
| Operator Detail | N/A |
| Product Subtitle | Introducing The Exidor 297 Push Pad Latch – Your Reliable Emergency Exit Solution. This Single-point, Surface-mounted Latch Is Easy To Install And Compatible With Timber And Metal Doors. It Features An Adaptor For Rim Cylinder Connection And Offers Various Keep Options For Different Frame Styles. Enhance Safety Effortlessly! |
| Projection (mm) | 83 |
| Standard | CE, Certifire, EN 1634-1, EN 179, UKCA |
| Style | Push |
| Unit Type | Panic |
| Feature | Surface Mounted |
| Product | Product ID |
|---|---|
| 297 Push pad latch | 15000200 |
| 297 Push pad latch | 15000201 |
| 297 Push pad latch | 15000220 |
| 297 Push pad latch | 15001200 |
| 297 Push pad latch | 15002200 |
| 297 Push pad latch | 15004200 |
| 297 Push pad latch | 15005200 |
| 297 Push pad latch | 15005203 |
| 297 Push pad latch | 15006200 |
| 297 Push pad latch | 15901098 |
| 297 Push pad latch | 15901114 |
| 297 Push pad latch | 15911440 |
| 297 Push pad latch | 15911442 |
| 297 Push pad latch | 15911447 |
| 297 Push pad latch | 15911541 |
| 297 Push pad latch | 15911544 |
| 297 Push pad latch | 15911545 |
| 297 Push pad latch | 15911547 |
Exidor emergency push pad shoot bolt for single doors, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the bolts, the bolts remain retracted until automatically released on closing of the door.
Certified in compliance with EN 179 with suitability for timber doors up to FD120 and metal doors FD120/FD240. Indicate the required finish when ordering.
Exidor emergency push pad shoot bolt for single doors, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the bolts, the bolts remain retracted until automatically released on closing of the door.
Certified in compliance with EN 179 with suitability for timber doors up to FD120 and metal doors FD120/FD240. Indicate the required finish when ordering.
Exidor emergency push pad with a mortice night latch, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the mortice lock latch, releasing the pad returns the mortice lock latch to the rest position.
Ideal for restricted access areas requiring key entry as a mortice lock offers more protection against abuse on the internal face. Certified in compliance with EN 179. Indicate the required finish when ordering.
Exidor push pad emergency horizontal Pullman latch that is simple to install, supplied with timber or steel door keeps and fixings.
The unit is operated by pushing the pad down into the door face to retract the latch bolts, releasing the pad returns the latch bolts to the rest position. Standard-size panic bolts are suitable for single doors up to 2440mm high. Special sizes are available on request.
Certified in compliance with EN 179 with suitability for timber doors up to FD120 and metal doors FD120/FD240. Indicate the required finish when ordering.
