• Four point locking on single door with locking points on all 4 edges of the door

    Been part of succesfull LPS 1175 testing of doorsets

    Solid stainless steel option available

    Push bar design easily cut to size to suit different door widths

    Range of fully tested outside access devices and accessories available

  • NameValue
    BrandExidor
    ActivationPush Bar
    AlarmedNo
    Bolt StyleAdjustable Shoot Bolts & Central Shoot Bolt
    Cylinder IncludedNo
    Dimensions (mm)1227 X 175 X 106
    DoggedNo
    Door Height (mm)2440
    Door OpeningOutward
    Door TypeMetal, Rebated Double Active Leaf, Single, Timber
    Durability200000
    Escape Hardware FunctionShoot Bolt
    FinishAnthracite Grey
    Finish TypeGrey
    Fire Door ApprovalYes
    Fire Rated MetalFD120, FD240
    Fire Rated TimberFD30, FD60
    FixingsFixings Supplied
    HandingUniversal
    Keep DetailStandard
    Key RetentionNo
    Locking Points4
    Max Door Height (mm)2440
    Max Door Thickness (mm)46 To 51
    Max Door Weight (kg)200kg
    Max Door Width (mm)1220
    Mounting MethodSurface Mounted
    Operation TypePush
    Operator DetailPush Bar

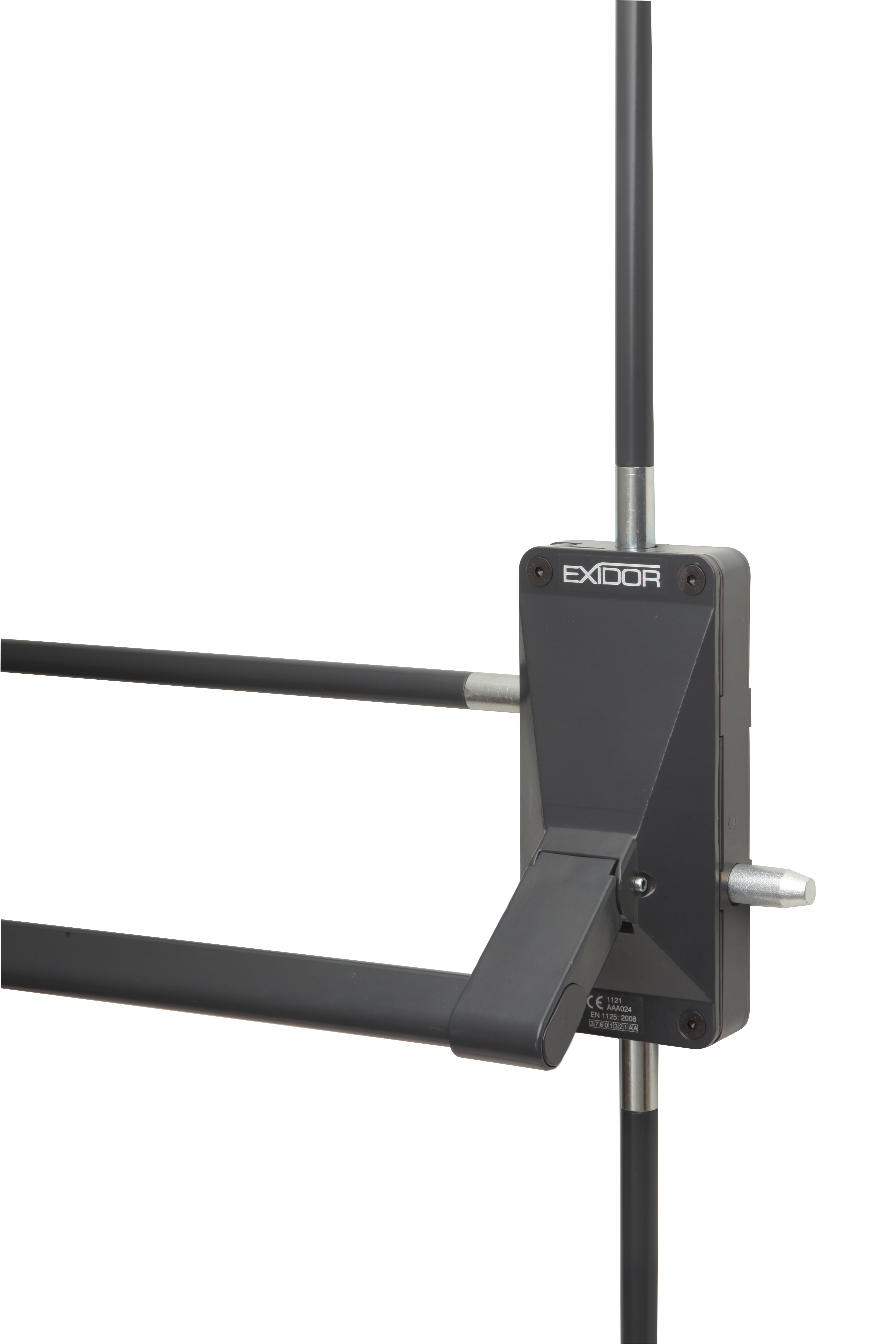

    Product SubtitleIntroducing The Exidor 704B/30 Push Bar With 4 Point Locking, Designed For High-security Needs In Warehouses And Commercial Properties. Featuring A Robust Push Bar Mechanism And Four Locking Points, It Ensures Maximum Intruder Resistance. Available In Solid Stainless Steel And Customizable To Fit Various Door Widths.
    Projection (mm)133
    StandardsCE, Certifire, EN 1125, EN 1634-1, LPS 1175, UKCA
    StylePanic
    Unit TypePanic
    FunctionShoot Bolt
  • ProductProduct IDAttributes
    704B/30 Push bar with 4 point locking15092350
    Fire Rated: Timber
    Micro Switched: No
    Suitable Door Type: Timber
    704B/30 Push bar with 4 point locking15093271
    Fire Rated: Metal
    Micro Switched: No
    Suitable Door Type: Steel
    704B/30 Push bar with 4 point locking15093272
    Fire Rated: Metal
    Micro Switched: Yes
    Suitable Door Type: Steel
