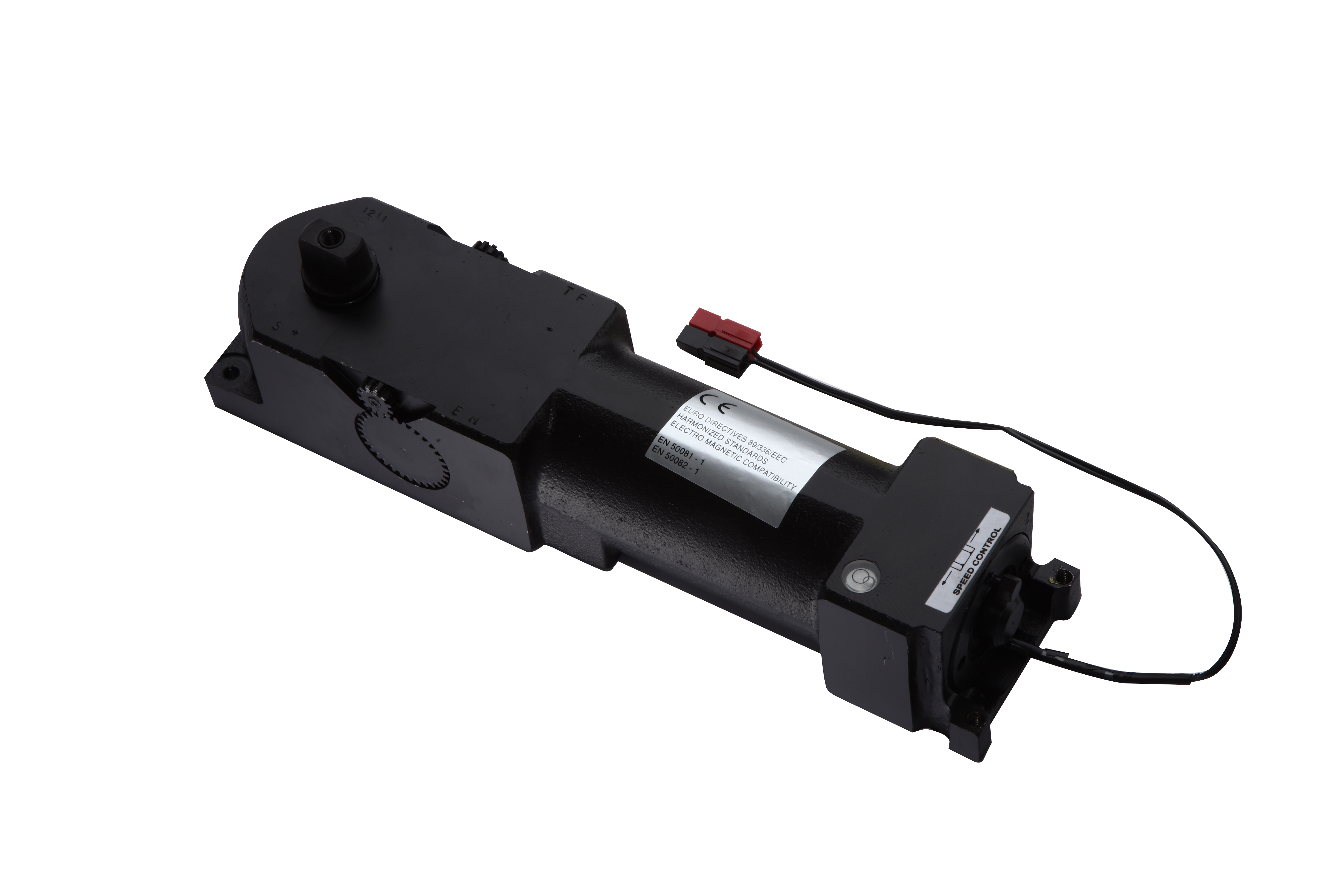

Exidor's 3470 E-Mag hold open floor spring, is the perfect solution for demanding door environments. The 3470 is available as either single action or double action and can be supplied either as a mechanism and box only or with fittings and cover plate.
Suitable for use on doors up to 400kg
Backcheck
Electromagnetic hold open 65° to 175°
Highly efficient double cam mechanism, aswell as a unique 3° leading edge adjustment for improved alignment
Three dimensional in-box adjustment and a visual spirit level fitting aid
| Name | Value |
|---|---|
| Brand | UNION |
| EAN code | 5013904905475 |
| Range Name | Exidor |
| Warranty (Years) | 2 |
| Anti Slam | No |
| Arm Supplied | Order Separately |
| Backcheck | Yes |
| Cover Trim Plate | Exposed Body |
| Delayed Action | No |
| Door Leaf Material | Timber |
| Double Action | Yes |
| Finish | Self Colour |
| Finish Type | Specialist |
| Fire Rated | Yes |
| Fire Rated Metal | FD120, FD240, FD60, FD90 |
| Fire Rated Timber | FD30, FD60 |
| Force Adjustment | No |
| Free Swing | No |
| Height Adjustable Arm System | N/A |
| Hold Open - Electromechanical | Yes |
| Hold Open Function | Yes |
| Hold Open - Manual | No |
| Installation Type | Floor Spring |
| Latching Speed | No |
| Max Closing Force | EN4 |
| Max Door Weight (kg) | 400kg |
| Max Door Width (mm) | 1100mm |
| Max Opening Angle | 180° |
| Max Opening Angle Hinge Side | N/A |
| Max Opening Angle Non Hinge Side | N/A |
| Mechanism | Cam Action |
| Min Closing Force | EN4 |
| Min Door Thickness (mm) | 44 |
| Mounting Method | N/A |
| Package Type | Boxed |
| Product Subtitle | Discover The Exidor 3470 Series E-Mag EN 4 Floor Spring By UNION, Designed For Demanding Door Environments. This Versatile Solution Supports Doors Up To 400kg, Featuring An Electromagnetic Hold Open From 65° To 175° And A Reliable Backcheck. Perfect For Single Or Double Action Doors! |
| Security | No |
| Single Action | Yes |
| SKU | 20040001 |
| Standards | CE, Certifire, EN 1155 |
| Function | Backcheck, Double Action, Hold Open - Electromechanical, Single Action |
