UNION

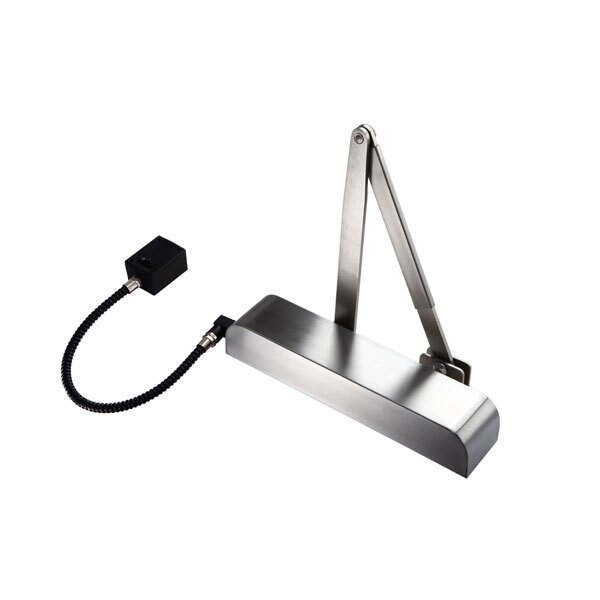

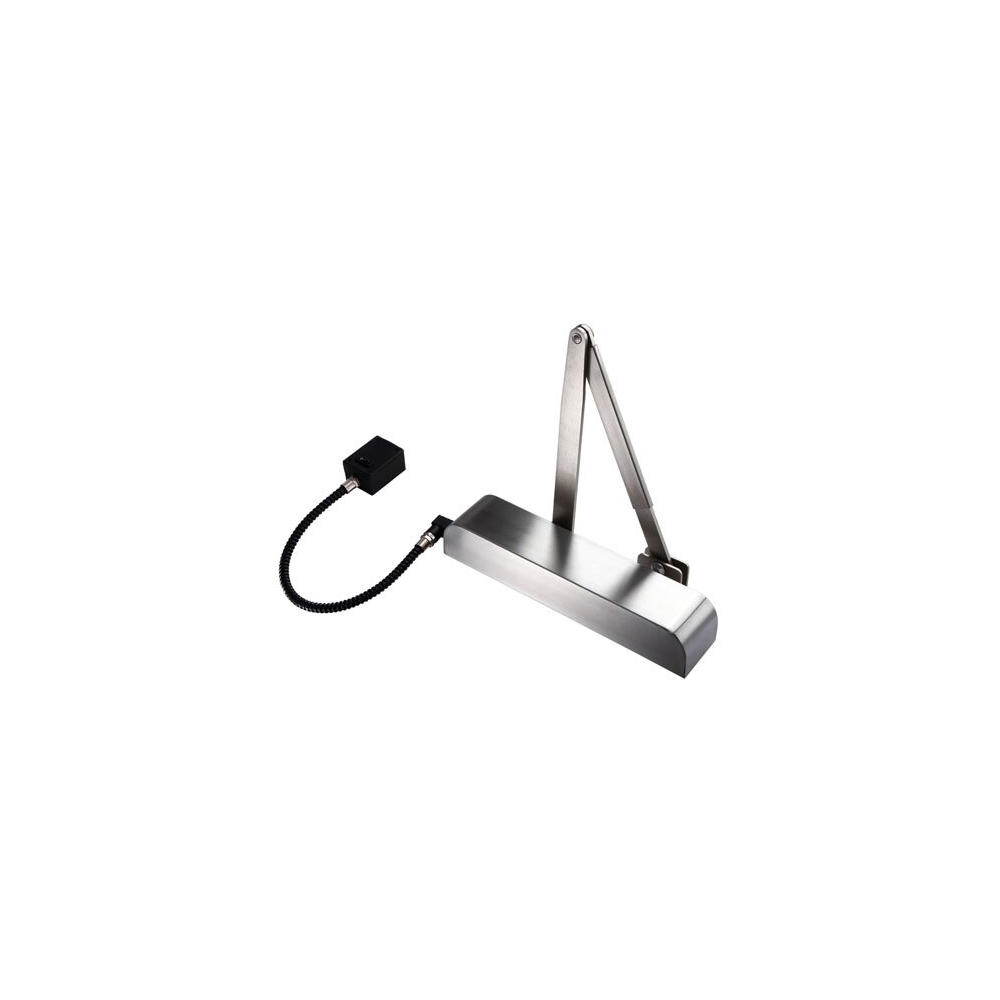

Exidor 9880 Guardian E-Mag care home swing free closer, power size 4

9880 Guardian by Exidor is a unique swing-free door closer developed specifically to meet the needs of care home facilities. In a class of its own, the Guardian offers specific features that reduce the risk of injury to residents as well as eradicating the need to wedge doors open.

ANTI-SLAM: The swing-free mode of a closer can allow a door to slam shut. Whether this is accidental, deliberate, or just caused by a draught, it poses a real risk to frail residents. The Guardian closer has been specifically developed with an anti-slam function that controls and slows the motion of the door.

DRIFT RESISTANCE: Exidor's Guardian closer offers a low-level control on the door, which stops it from drifting from its open position – eradicating the need to wedge doors open, yet still allowing the door to operate freely to the user. The 9000 Series is supplied with either a stylish square cover or an elegant radius cover and has a matching adjustable arm as standard.

  • Power size 4
  • Adjustable latching speed
  • Adjustable sweep speed
  • Supplied with brackets for fig 1 and fig 6 fixing
  • Power supply units are also available
  • Elegant radius cover

  • Declaration of Performance (for Webshop/AEM) S3

  • Power size 4

    Adjustable latching and sweep speed

    Supplied with brackets for fig 1 and fig 6 fixing

    Power supply units are also available

    Elegant radius or square cover available

  • NameValue
    BrandUNION
    EAN code5013904903006
    Range NameExidor
    Warranty (Years)2
    Anti SlamYes
    Arm SuppliedScissor Arm
    BackcheckNo
    Cover IncludedYes
    Cover Trim PlateExposed Body
    Delayed ActionNo
    Door Leaf MaterialTimber & Metal
    Double ActionNo
    FinishSilver
    Finish TypeSilver
    Fire RatedYes
    Fire Rated MetalFD240
    Fire Rated TimberFD120
    Force AdjustmentYes
    Free SwingYes
    Height Adjustable Arm SystemN/A
    Hold Open - ElectromechanicalNo
    Hold Open FunctionManual
    Hold Open - ManualNo
    Installation TypeSurface
    Latching SpeedYes
    Max Closing ForceEN4
    Max Door Weight (kg)80kg
    Max Door Width (mm)1100mm
    Max Opening Angle180°
    Max Opening Angle Hinge Side180°
    Max Opening Angle Non Hinge Side180°
    MechanismCam And Roller
    Min Closing ForceEN4
    Min Door Thickness (mm)44
    Mounting MethodDoor Mounted
    Package TypeBoxed
    Product SubtitleIntroducing The Exidor 9880 Guardian E-Mag Care Home Swing Free Closer By UNION. Designed For Care Facilities, This Innovative Door Closer Enhances Safety With Its Anti-slam Feature And Drift Resistance. Enjoy Adjustable Latching And Sweep Speeds, Plus Elegant Radius Cover Options. Perfect For A Secure And Accessible Environment.
    SecurityNo
    Single ActionYes
    SKU20020305
    StandardsCE, Certifire, EN 1155
    FunctionAnti Slam, Free Swing, Single Action
