Fixed power size 4
Suitable for fixing in fig.1 and fig.66 without affecting power size
Efficient cam and roller mechanism for ease of use
Detachable loop, enabling electrics and installation to be completed separately
Easy installation
Can be fitted in hold open or free swing mode
Name | Value |
---|---|
Brand | UNION |
Anti Slam | No |
Arm Supplied | Scissor Arm |
Backcheck | No |
Cover Included | Yes |
Delayed Action | No |
Door Leaf Material | Timber & Metal |
Door Leaf Type | Active |
Door Type | Metal, Single, Timber |
Double Action | No |
Fire Door Approval | Yes |
Fire Rated | Yes |
Fire Rated Metal | FD240 |
Fire Rated Timber | FD120 |
Fixings | Fixings Supplied |
Force Adjustment | No |
Free Swing | Yes |
Hold Open - Electromechanical | Yes |
Hold Open Function | Yes |
Installation Type | Overhead |
Latching Speed | Yes |
Manual Pull Force | <120nm |
Max Closing Force | EN4 |
Max Door Weight (kg) | 80kg |
Max Door Width (mm) | 1100mm |
Max Opening Angle | 170° |
Max Opening Angle Hinge Side | 170° |
Mechanism | Cam And Roller |
Min Closing Force | EN4 |
Min Door Thickness (mm) | 44 |
Mounting Method | Hinge Side |
Operating Voltage | 12-24 |
Package Type | Boxed |
Product Subtitle | Introducing The CE4F-E Electromagnetic Closer By Our Trusted Brand. This Stylish Unit Combines Hold Open And Free-swing Functionality, Making It Perfect For High Traffic Areas. Designed For Ease Of Use, It’s Ideal For Everyone, Including Children And The Elderly. It Also Enhances Safety By Connecting To Fire Systems, Ensuring Quick Closure In Emergencies. |
Required Power Supply | 24 VDC |
Security | No |
Single Action | Yes |
Slide Cover Type | Radius |
Standards | CE, EN 1155, EN 1634-1, UKCA |
Function | Free Swing, Hold Open - Electromechanical, Single Action |
Product | Product ID | Attributes |
---|---|---|

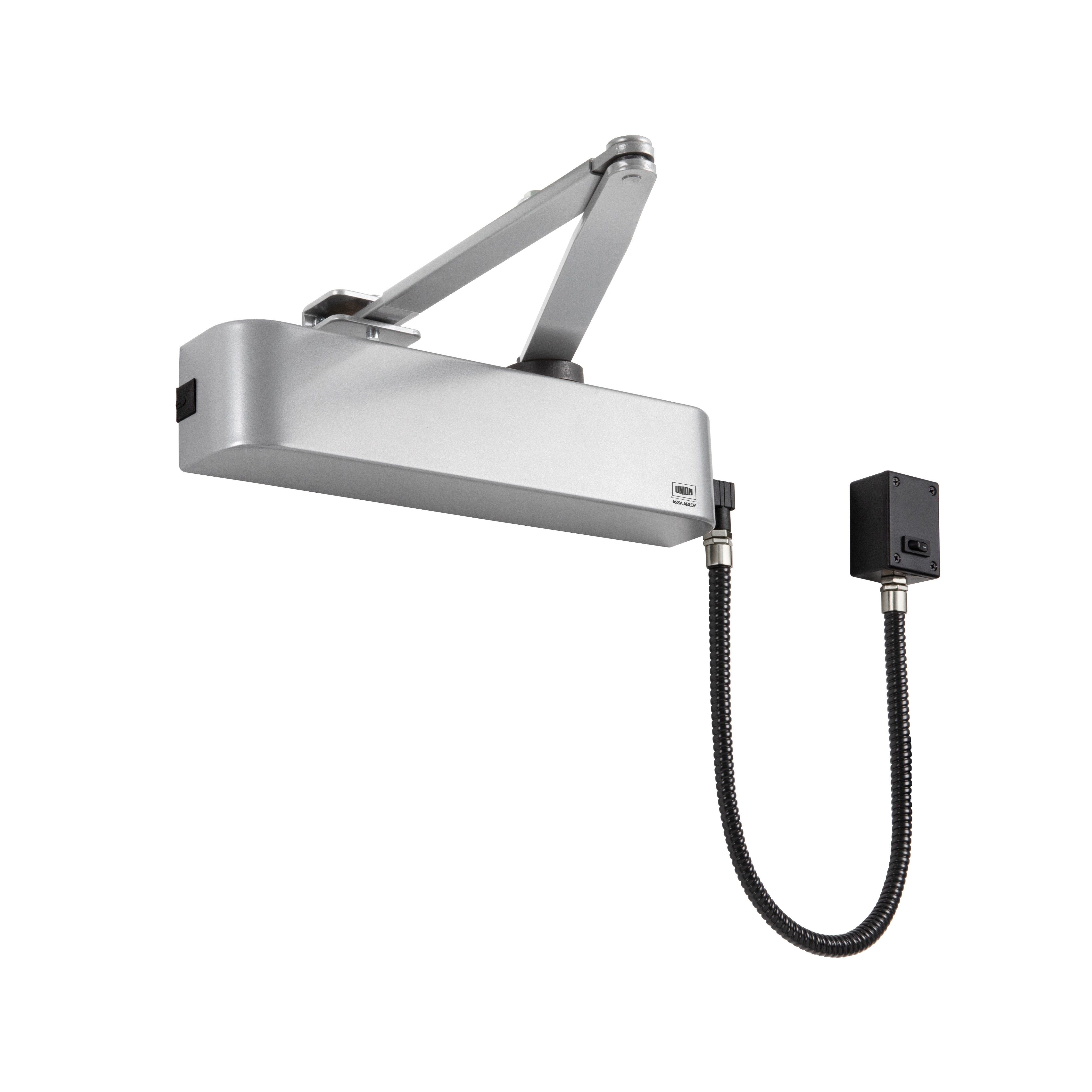

CE4F-E electromagnetic closer | CE4F-E | Finish: Silver |
CE4F-E electromagnetic closer | CE4F-E-SSS | Finish: Satin Stainless Steel |

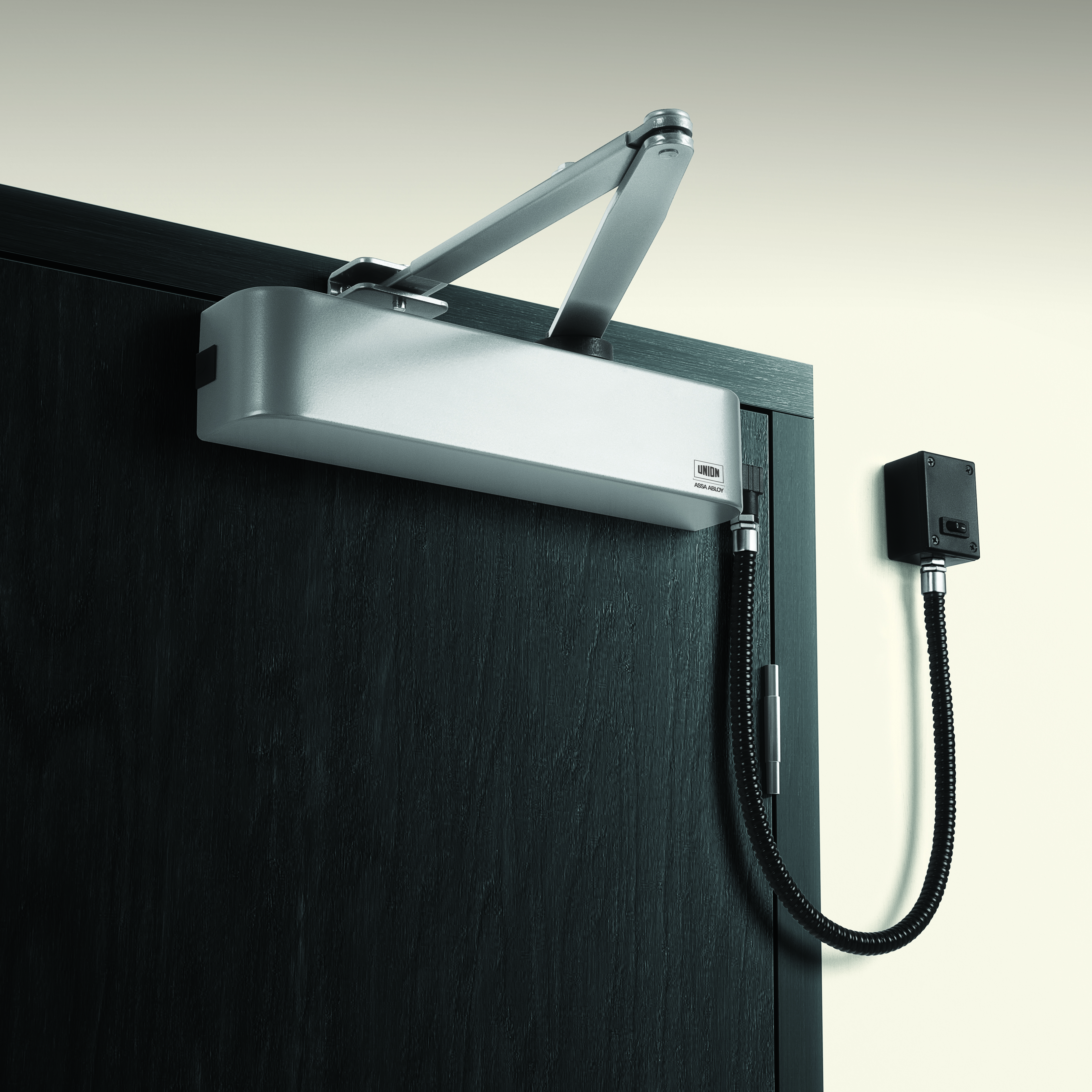

Exidor's 4870 hold open/swing free E-Mag overhead door closer, power size 4 features both hold open and swing free options combined within the same unit. Hold open function holds the door in its open position where as swing free mode allows the door to be opened with no resistance from the closer – However, when the buildings fire alarm is activated, power is cut to the unit and the closer then shuts the door. The 4000 Series can be fitted with a choice of stylish front designs, including B-slide, L-Slide or E-Slide and has a matching arm as standard.
