Power size 4
Adjustable latching and sweep speed
Supplied with brackets for fig 1 and fig 6 fixing
Power supply units are also available
Elegant square cover, in a variety of finishes
Name | Value |
---|---|
Brand | Exidor |
Anti Slam | No |
Arm Supplied | Scissor Arm |
Backcheck | No |
Cover Included | Yes |
Cover Trim Plate | Cover |
Delayed Action | No |
Door Leaf Material | Timber & Metal |
Door Type | Metal, Timber |
Double Action | No |
Fire Door Approval | Yes |
Fire Rated | Yes |
Fire Rated Metal | FD240 |
Fire Rated Timber | FD120 |
Force Adjustment | No |
Free Swing | Yes |
Hold Open | Yes |
Hold Open - Electromechanical | Yes |
Hold Open Function | Electromechanical |
Hold Open - Manual | No |
Latching Speed | Yes |
Max Closing Force | EN4 |
Max Door Weight (kg) | 80kg |
Max Door Width (mm) | 1100mm |
Max Opening Angle | 180° |
Max Opening Angle | 136° To 180° |
Max Opening Angle Hinge Side | 180° |
Max Opening Angle Non Hinge Side | 180° |
Mechanism | Cam And Roller |
Min Closing Force | EN4 |
Mounting Method | Door Mounted |
Package Type | Boxed |
Product Subtitle | Enhance Your Door’s Security And Style With The Exidor 9870-SQ E-mag Door Closer. Featuring A Sleek Cover And Matching Adjustable Arm, It Offers Smooth, Reliable Closing With Adjustable Latching And Sweep Speeds. Supplied With Versatile Brackets, This Trusted Exidor Closer Ensures Effortless Control And Safety, Perfectly Blending Modern Design With Dependable Performance. |
Security | No |
Single Action | Yes |
Standards | CE, Certifire, EN 1155 |
Function | Free Swing, Hold Open - Electromechanical, Single Action |
Product | Product ID | Attributes |
---|---|---|

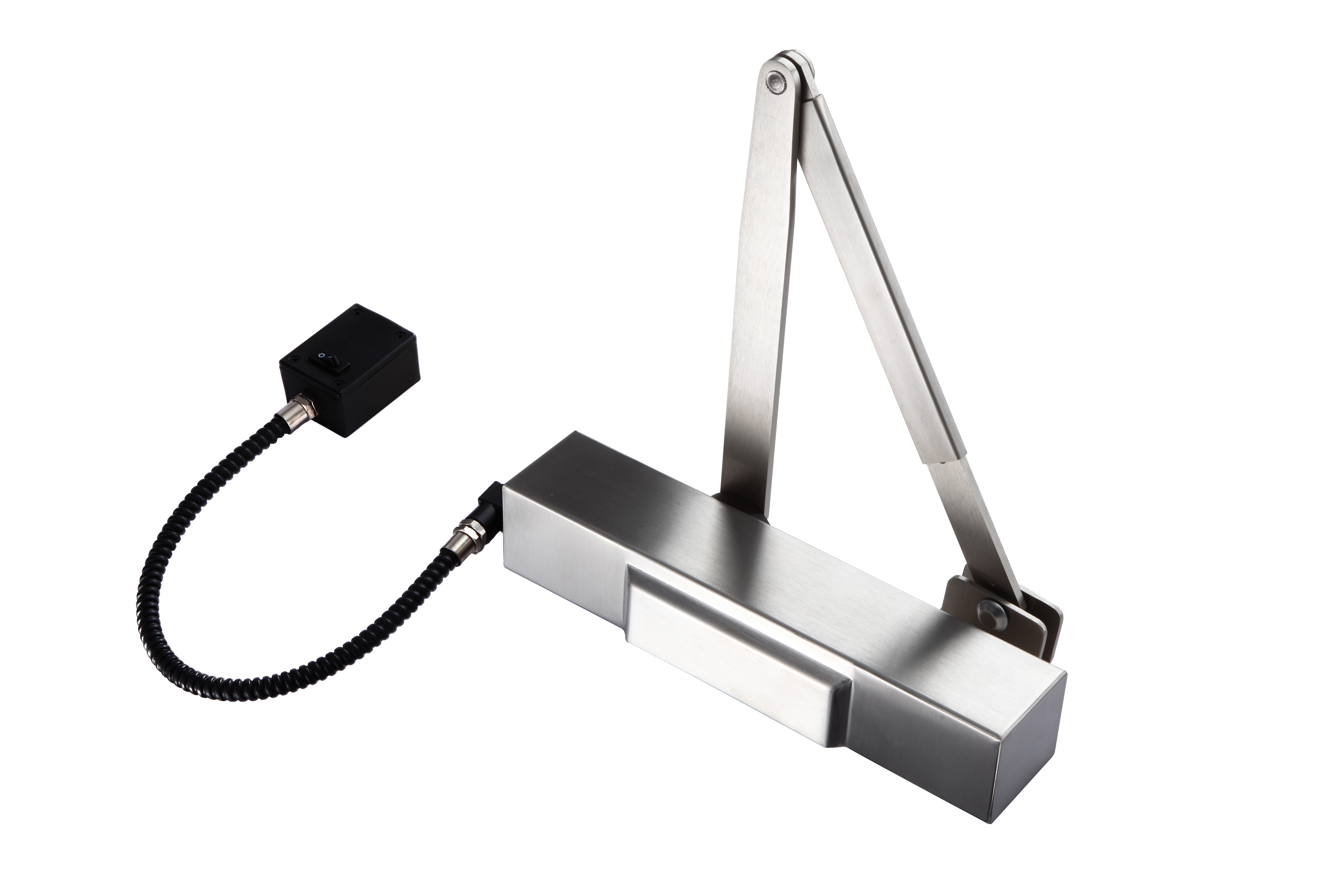

9870 e-mag door closers with square cover and matching adjustable arm | 20020030 | Finish: Polished Brass Style: Standard |
9870 e-mag door closers with square cover and matching adjustable arm | 20020031 | Finish: Polished Stainless Steel Style: Standard |
9870 e-mag door closers with square cover and matching adjustable arm | 20020035 | Finish: Silver Style: Standard |
9870 e-mag door closers with square cover and matching adjustable arm | 20020037 | Finish: Satin Stainless Steel Style: Standard |
9870 e-mag door closers with square cover and matching adjustable arm | 20020116 | Finish: Pure White Style: Standard |
9870 e-mag door closers with square cover and matching adjustable arm | 20020186 | Finish: Gold Style: Standard |
9870 e-mag door closers with square cover and matching adjustable arm | 20020328 | Finish: Black Style: Standard |
