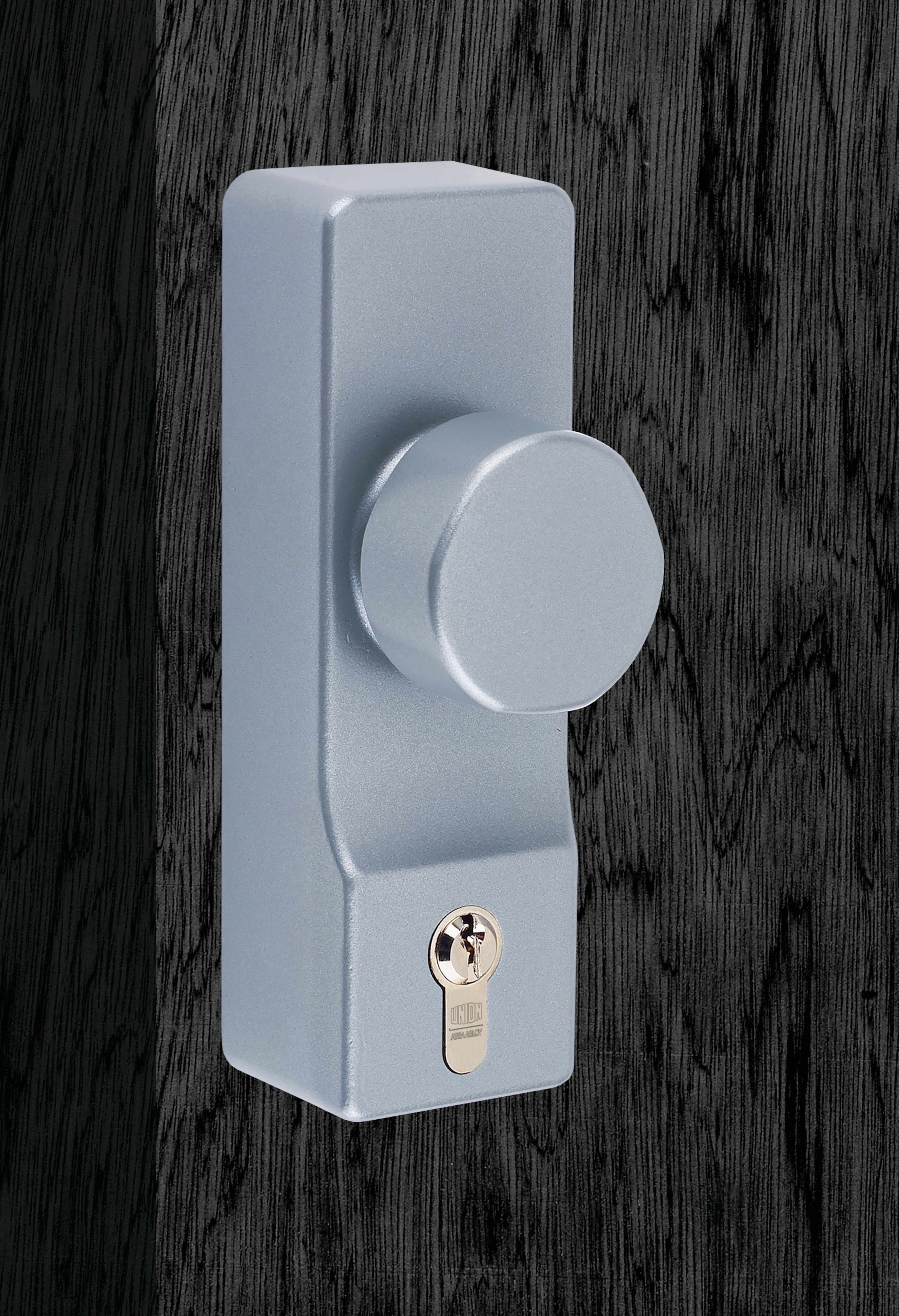

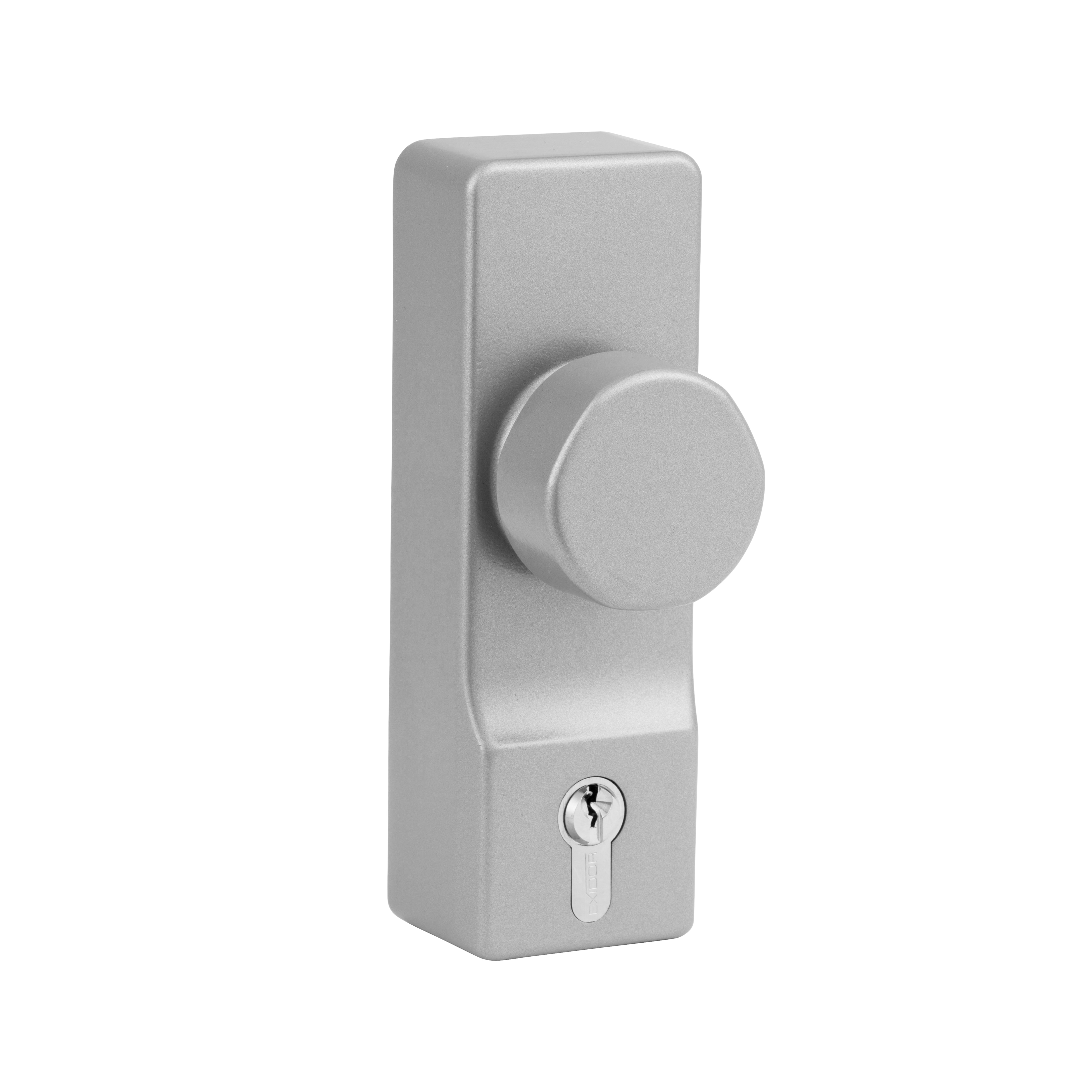

ExiSAFE CE855 knob and lever outside access devices

ExiSAFE round knob outside access device for use with 200 series and 300 series hardware, for gaining entry through an escape door. The unit is operated by rotating the knob to retract the internal bolts/latches, releasing the knob returns the internal bolts/latches to the rest position. Available with or without a Euro cylinder. Key retention option available (Suffix order code with “RK” for key retention). Locking the cylinder prevents access into the building but will not prevent escape from the building. Certified as an approved accessory to the ExiSAFE range as part of EN 1125 and EN 179. Certifire approval when used as an accessory to the ExiSAFE range. Indicate the required finish when ordering (plated finishes are not recommended for external use). Additional fixings for thicker doors are available on request.

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Compact design of external hardware for use with 200 and 300 series hardware

Bolt through fixings make it suitable for steel or timber doors up to 50mm thick

Cylinder specification for master keying needs: 40mm single Euro profile cylinder, with rear face drill and tap fixing

Suitable for access points such as staff entries

Suitable for use with: 296, 294, 294A, 285, 284, 297, 293, 293A

NameValue
BrandUNION
ActivationKnob Handle
Bolt StyleInternal Bolts / Latches
Cylinder DetailEuro
Dimensions (mm)100 X 130 X 220
DoggedNo
Door Height (mm)2440
Door OpeningOutward
Door TypePlain Meeting Stile Double Either Leaf, Rebated Double Active Leaf, Single, Steel, Timber
Escape Hardware FeatureOutside Access Devices
Escape Hardware FunctionCentral Latch/ Lock
FinishSilver
Finish TypeSilver
Fire Door ApprovalYes
Fire RatedYes
Fire Rated MetalFD120, FD240
Fire Rated TimberFD120, FD30, FD60, FD90
HandingUniversal
Locking Points0
Max Door Height (mm)2440
Max Door Thickness (mm)46 To 51
Max Door Weight (kg)200kg
Max Door Width (mm)1220
Micro SwitchedNo
Mounting MethodSurface Mounted
Operator DetailKnob
Product SubtitleIntroducing The Exisafe Lever Outside Access Device, A Trusted Solution For Secure Entry From The Outside. This Versatile Device Is Available As A Knob Or Lever And Fits Both Timber Fire Doors (up To FD60) And Metal Fire Doors (up To FD240). Universal-handed And Compliant With BS 8300, It’s The Perfect Choice For Safety And Accessibility.
Projection (mm)70
StandardsNone
Suitable Door TypeSteel & Timber
FeatureOutside Access Devices
FunctionCentral Latch/ Lock
