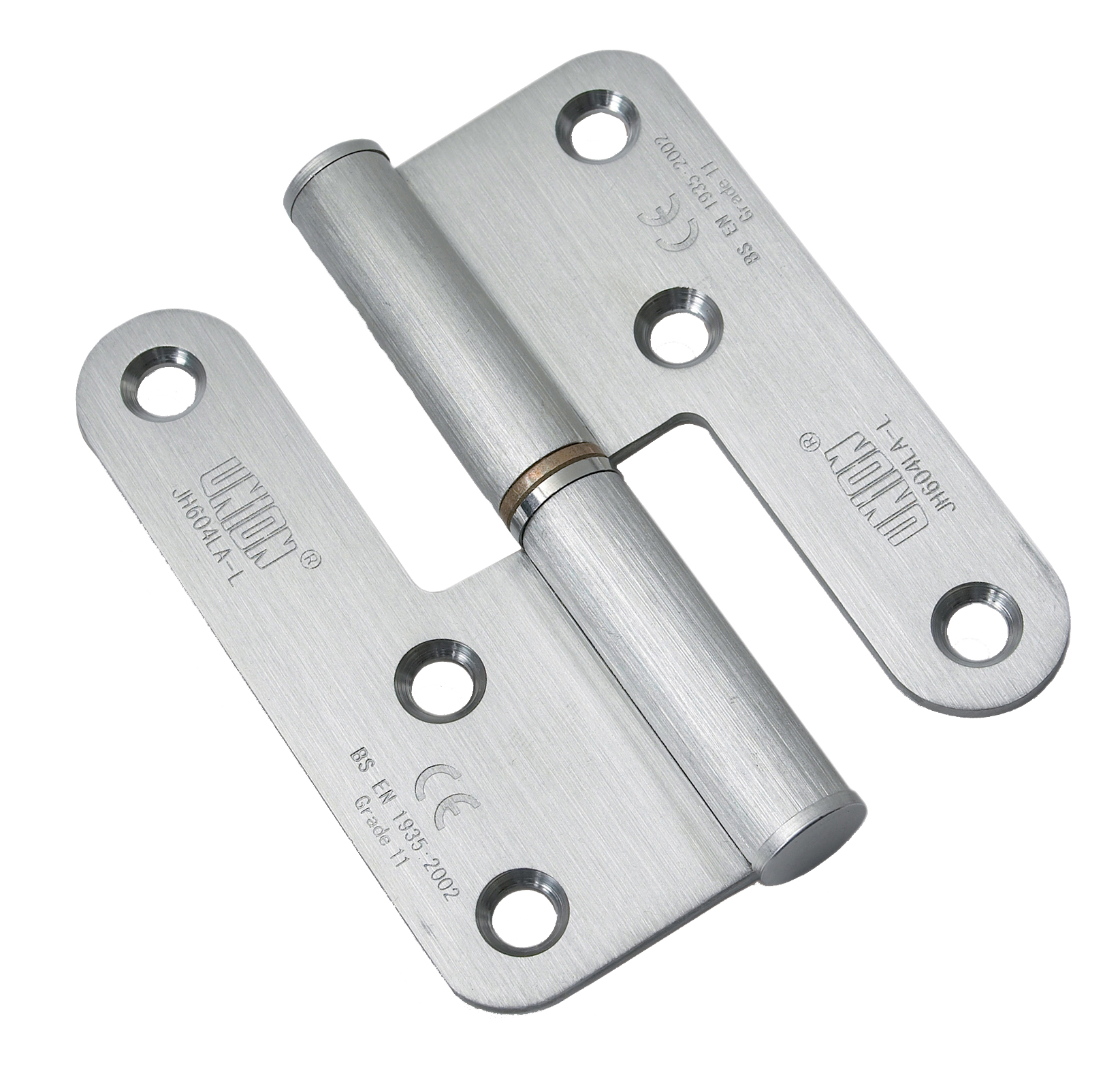

High performance PowerLOAD 604 grade 11 half-leaf, lift off-hinges

The high performance PowerLOAD 604 grade 11 lift-off hinges feature a half leaf design to reduce the material removed from doors on installation, as well as carbon steel and phosphorous bronze flanged bearing bushes providing long life. The PowerLOAD hinge family are virtually mainteance free and supplied with a 25-year guarantee, and are suitable for timber fire doors FD30 and FD60* making this hinge family ideal for environments where durability and reliability are paramount. *Intumescent protection must be used

Metal to metal wear and regular maintenance is significantly reduced by the carbon steel and phosphorous bronze flanged bearing bushes

Phosphorous bronze ring offers a great looking finish and increases longevity

Congruent fixing pattern spreads the load of the door more effectively within the timber

Radius variants available, radius corner offers speed of fixing with machine tools

Sold with both leaves together, without screws

Name	Value

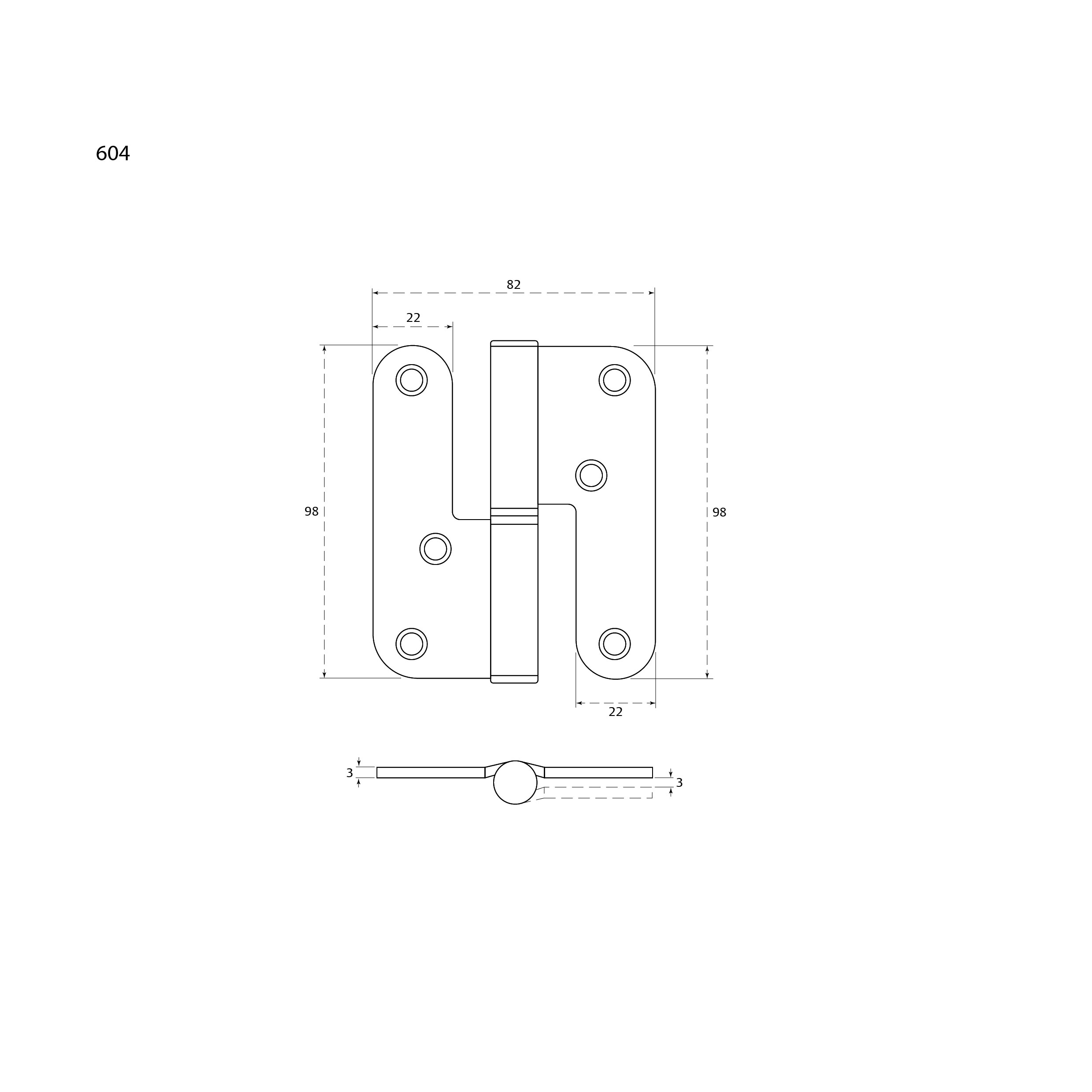

Dimensions (mm)	98 X 82 X 3
Durability	200000
Fire Door Approval	Yes
Hinges Material	Mild Steel
Hinges Type	Lift Off Hinges
Max Door Weight (kg)	80kg
Max Door Weight (kg)	Up To 100kg
Min Door Thickness (mm)	44
Pack Qty	20
Package Type	Boxed
Standards	CE, Certifire, EN 1935, UKCA
Warranty	25 Years
Type	Lift Off Hinges

CE Grade 11 butt hinges
CE Grade 11 butt hinges, suitable for both standard and fire doors in commercial or residential environments. Manufactured from durable steel and equipped with ball bearings. Designed for doors up to 80kg weight.
