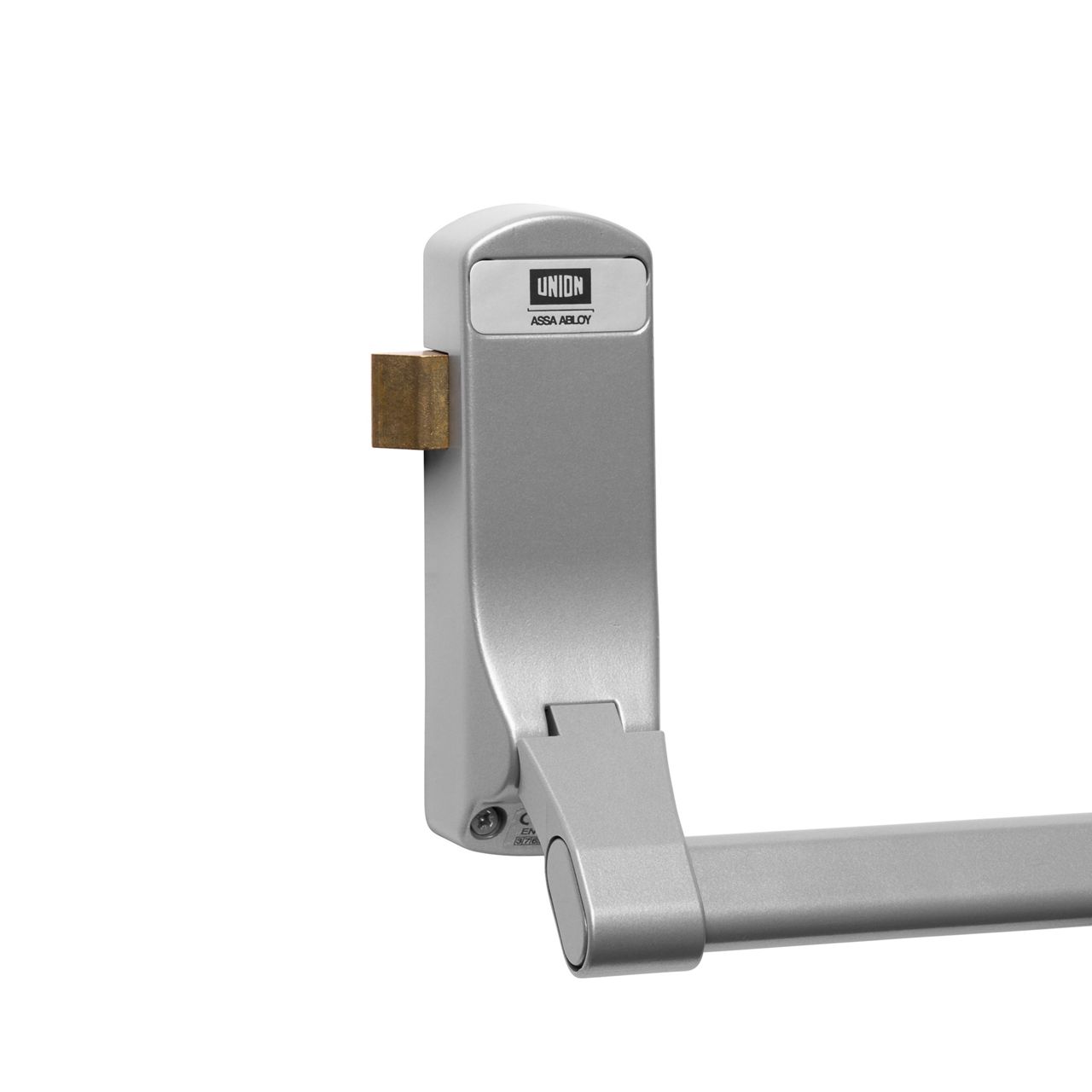

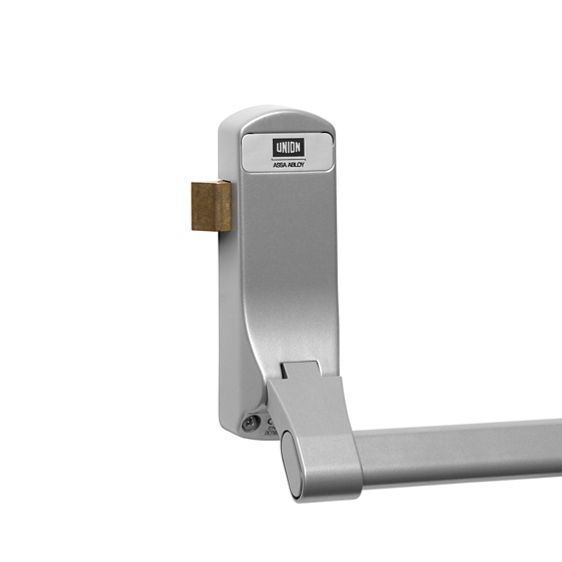

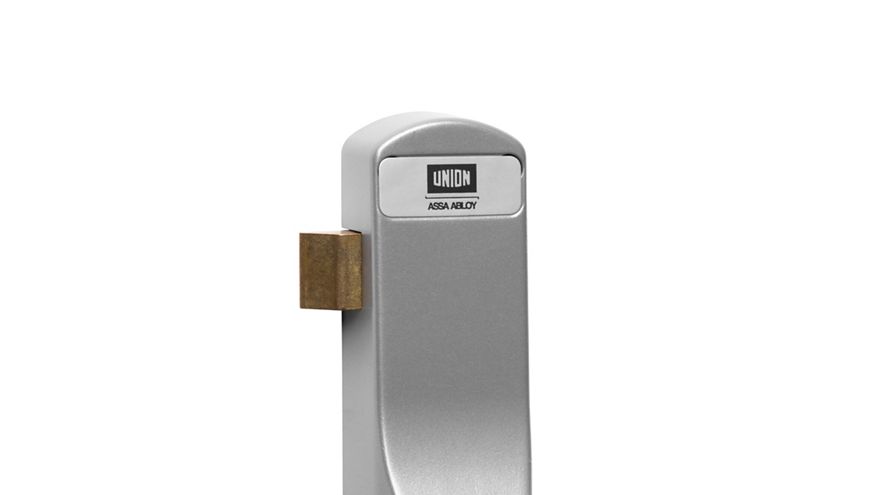

Exisafe panic latch
Exisafe panic latch is for use in buildings that are accessed by the public. the pushbar can be cut to size on site to fit it to each door. downward pressure on the bar withdraws the latch ensuring immediate release of the door.
ExiSAFE CE853PL is a surface mounted panic latch for both single or double door applications. Depressing the push bar allows safe and fast exit, whilst keeping a building secure from intruders.
- Universal handing
- Fire rated for use on timber and metal doors
- Surface mounted
- Closed arm design
- Timber or metal fixings variants available
Description Part number Bar code Exisafe CE853 panic latch J-CE853PL-SIL Fixings: Timber Door Exisafe CE853 panic latch J-CE853PLM-SIL Fixings: Metal Door Brochure
Data Sheet
Dimensional Drawing
- Alternative keeps and range of spares available
- Complete with signage that reads “Push bar to open”
- Install screws are concealed by UNION branded label and push bar
- Completed 200,000 cycles in durability testing
- 96 hours of corrosion resistance
- Slim line design projects less than 100mm from door face
- CE Marked to EN 1125
- Certifire approved
- Can be used on timber fire doors (up to FD120) or metal fire doors up to (FD240) up to 1200mm x 2440mm tall
- Push bar can be cut to size on site to fit each door
- Latch bolt can easily be reversed on site
