• Low power usage, from a 24V DC 1A power supply (source separately)

    Microswitch and alarm options

    Supplied with keeps and fixings

    TB450 suitable for door widths between 692 to 900mm / TB451 suitable for door widths between 872 and 1200

    Suffix order code with “MS” for microswitch or “AL” for alarmed

  • NameValue
    BrandExidor
    ActivationTouch Bar
    Bolt StyleLatch
    Cylinder DetailN/A
    Cylinder IncludedNo
    DoggedNo
    Door Height (mm)2440
    Door OpeningOutward
    Door TypeRebated Double Active Leaf, Single, Steel, Timber
    Durability200000
    Escape Hardware FeatureCentral Latch Lock
    Escape Hardware FunctionPanic Hardware
    Fire Door ApprovalNo
    Fire RatedNo
    Fire Rated MetalNo
    Fire Rated TimberNo
    FixingsFixings Supplied
    HandingUniversal
    Keep DetailStandard
    Key RetentionN/A
    Locking Points1
    Max Door Height (mm)2440
    Max Door Thickness (mm)46 To 51
    Max Door Weight (kg)200kg
    Mounting MethodSurface Mounted
    Operation TypePush
    Operator DetailTouch

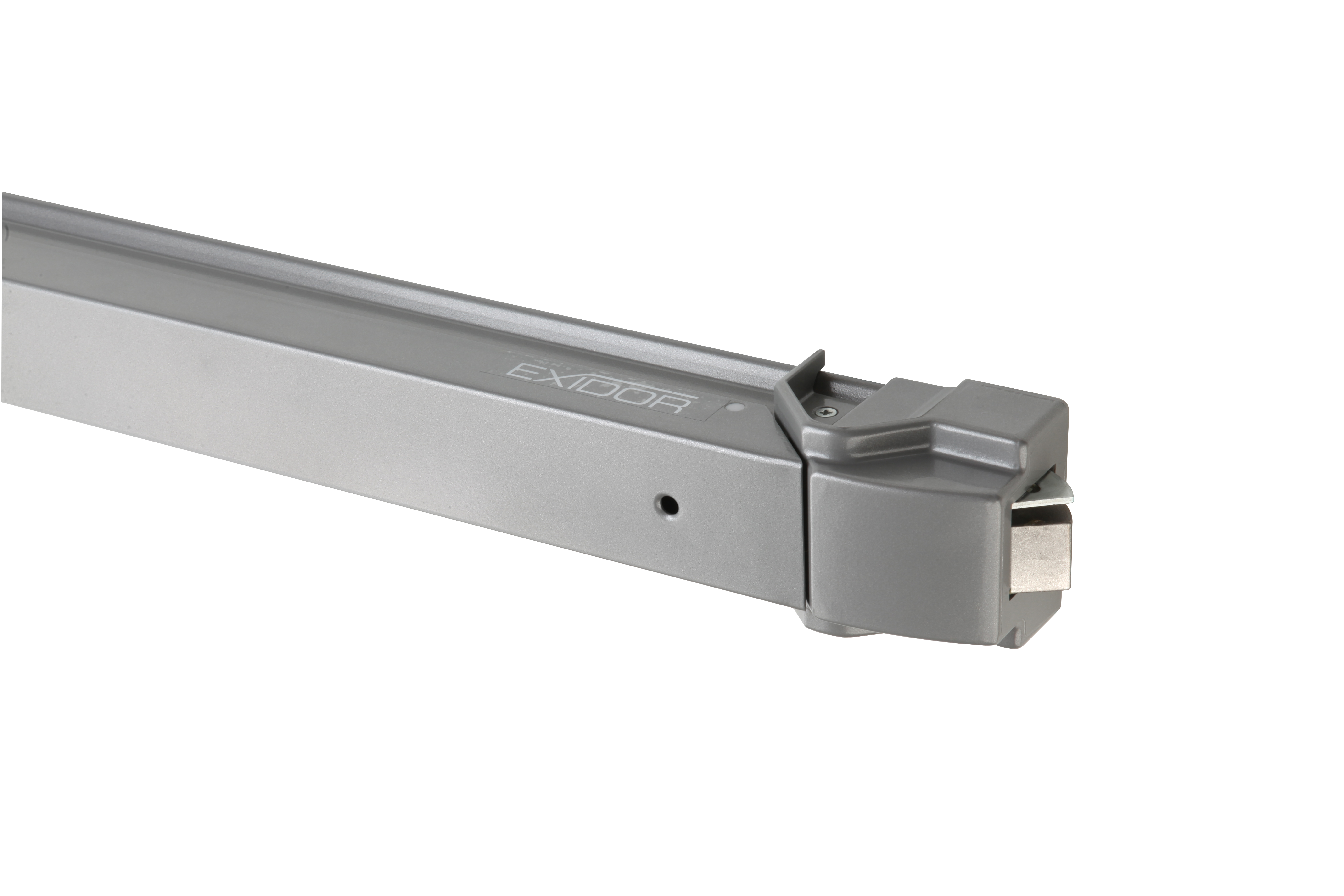

    Product SubtitleIntroducing The TB450 & TB451 Touch Bar Panic Latch By Exidor, Designed For Enhanced Security In Schools And Commercial Spaces. This Electronic Latch Features Low Power Usage And Built-in Electronic Dogging For Easy Operation. Available In Two Sizes For Doors Up To 1200mm Wide, It Comes With Keeps And Fixings For Seamless Installation.
    Projection (mm)62mm
    StandardsCE, EN 1125, UKCA
    StylePanic
    Suitable Door TypeTimber
  • ProductProduct IDAttributes
    TB450 & TB451 Touch bar panic latch15902400
    Alarmed: Yes
    Finish: Silver
    Max Door Width (mm): 1200mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15902600
    Alarmed: No
    Finish: Silver
    Max Door Width (mm): 900mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15902601
    Alarmed: No
    Finish: Stainless Steel Plate
    Max Door Width (mm): 900mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15902620
    Alarmed: No
    Finish: Steel Blue (Ral 5011)
    Max Door Width (mm): 900mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15902800
    Alarmed: No
    Finish: Silver
    Max Door Width (mm): 900mm
    Micro Switched: Yes
    TB450 & TB451 Touch bar panic latch15902801
    Alarmed: No
    Finish: Stainless Steel Plate
    Max Door Width (mm): 900mm
    Micro Switched: Yes
    TB450 & TB451 Touch bar panic latch15902900
    Alarmed: Yes
    Finish: Silver
    Max Door Width (mm): 900mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15903100
    Alarmed: No
    Finish: Silver
    Max Door Width (mm): 1200mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15903101
    Alarmed: No
    Finish: Stainless Steel Plate
    Max Door Width (mm): 1200mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15903200
    Alarmed: No
    Finish: Black and Green
    Max Door Width (mm): 1200mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15903206
    Alarmed: No
    Finish: Jet Black (Ral 9005)
    Max Door Width (mm): 1200mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15903209
    Alarmed: No
    Finish: Steel Blue (Ral 5011)
    Max Door Width (mm): 1200mm
    Micro Switched: No
    TB450 & TB451 Touch bar panic latch15904400
    Alarmed: No
    Finish: Silver
    Max Door Width (mm): 1200mm
    Micro Switched: Yes
    TB450 & TB451 Touch bar panic latch15907600
    Alarmed: No
    Finish: Stainless Steel Plate
    Max Door Width (mm): 1200mm
    Micro Switched: Yes

Similar products

  • TB452 & TB453 Touch bar panic latch

    Exidor two-point locking electronic latch retraction panic touch bar with two vertical Pullman latches, suitable for use with access control systems. Ideal use in banking and financial institutes, where greater awareness of security is required.

    The unit is operated by pressing the bar into the door face retracting the Pullman latches, releasing the bar returning the Pullman latches to the rest position.

    The touch bar is available in two standard sizes to suit doors up to 900mm or 1200mm wide - bar widths are set sizes with other sizes available on request.

    Certified in compliance with EN 1125. Keeps available for alternative frame arrangements. Indicate the required finish when ordering.

  • TB454 & TB455 Electronic latch retraction touch bar

    Exidor three-point locking electronic latch retraction panic touch bar with central latch and vertical Pullman latches, suitable for use with access control systems.

    Ideal for data centres, where greater awareness of security is required. The unit is operated by pressing the bar into the door face retracting the Pullman latches, releasing the bar returns the Pullman latches to the rest position.

    The touch bar is available in two standard sizes to suit doors up to 900mm or 1200mm wide - bar widths are set sizes with other sizes available on request.

    Certified in compliance with EN 1125. Keeps available for alternative frame arrangements. Indicate the required finish when ordering.

  • TB466 & TB467 Electronic latch retraction touch bar

    Exidor two-point locking electronic latch retraction panic touch bar with two horizontal Pullman latches, suitable for use with access control systems. Ideal for industrial sites, where greater awareness of security is required.

    The unit is operated by pressing the bar into the door face retracting the Pullman latches, releasing the bar returns the Pullman latches to the rest position.

    The touch bar is available in two standard sizes to suit doors up to 900mm or 1200mm wide - bar widths are set sizes with other sizes available on request.

    Certified in compliance with EN 1125. Keeps available for alternative frame arrangements. Indicate the required finish when ordering.

  • TB468 & TB469 Electronic latch retraction touch bar

    Exidor three-point locking electronic latch retraction panic touch bar with central latch and horizontal Pullman latches, suitable for use with access control systems. Ideal for schools and commercial applications, where greater awareness of security is required.

    The unit is operated by pressing the bar into the door face retracting the Pullman latches and releasing the bar returning the Pullman latches to the rest position.

    The touch bar is available in two standard sizes to suit doors up to 900mm or 1200mm wide - bar widths are set sizes with other sizes available on request.

    Certified in compliance with EN 1125. Keeps available for alternative frame arrangements.

    Indicate the required finish when ordering.
