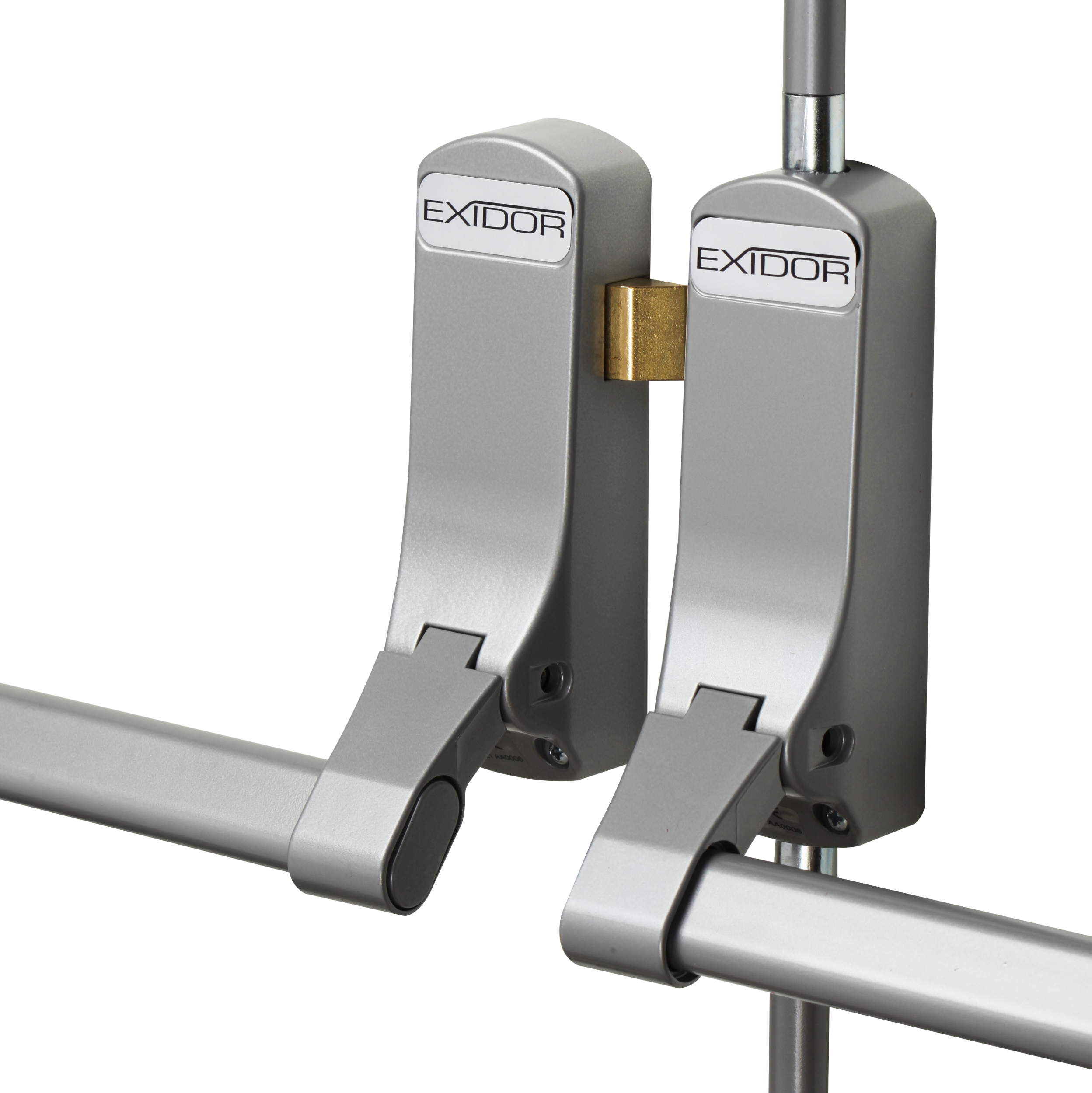

317 Rebated double doorset latch & vertical pullman

Exidor push bar panic bar set for rebated double doors comprising lath unit for active leaves and vertical Pullman latch for inactive leaves that is simple to install, supplied with timber or steel door keeps and fixings.

The unit is operated by pushing the bar down into the door face to retract the latch bolts, releasing the bar returns the latch bolts to the rest position.

Standard size panic bolts are suitable for single doors up to 1220mm wide and 2440mm high (special sizes are available on request).

Certified in compliance to EN 1125 with suitability for use on timber doors up to FD120 as well as metal doors FD120/FD240. Indicate required finish when ordering.
