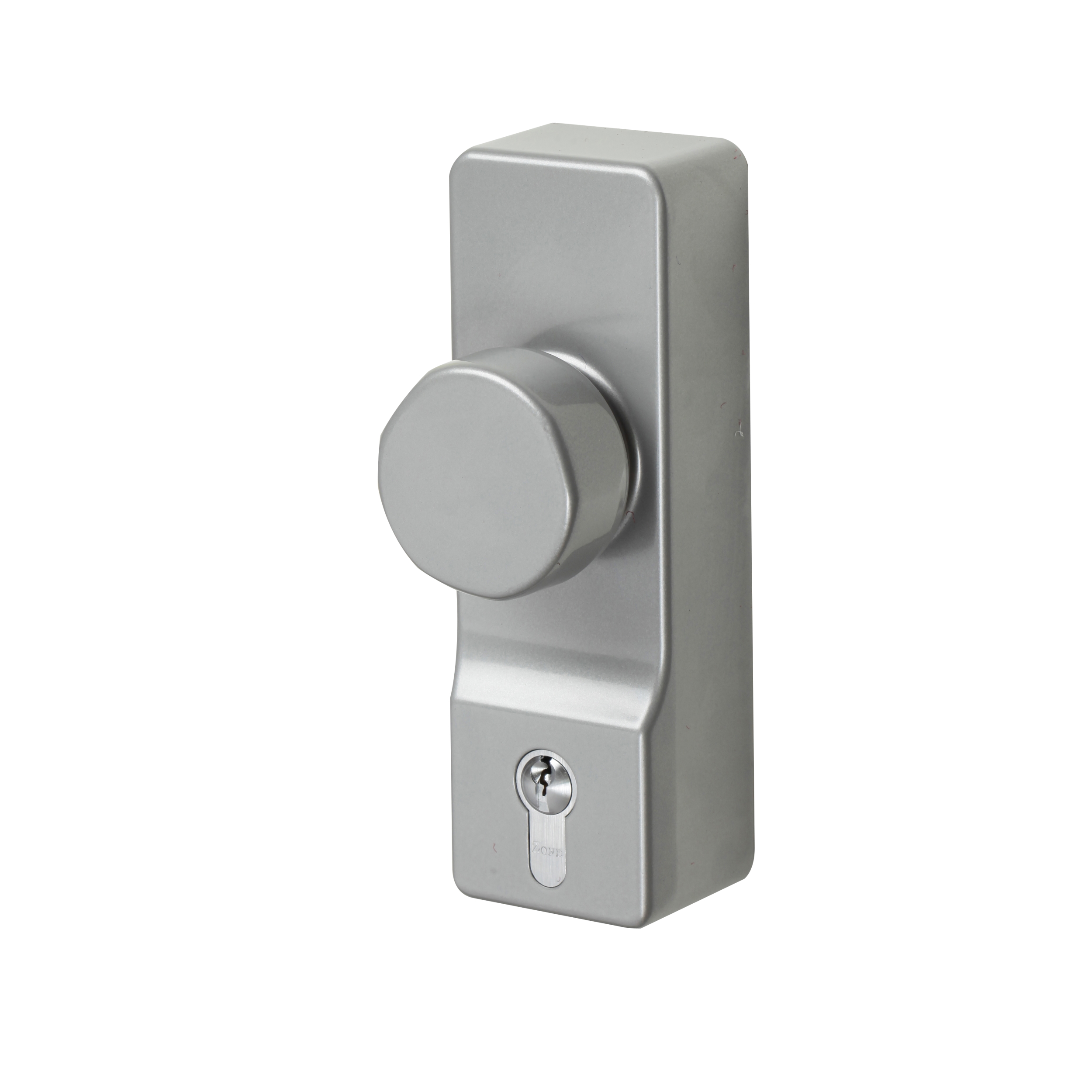

Compact design of external hardware for use with 200 and 300 series hardware
Bolt through fixings make it suitable for steel or timber doors up to 50mm thick
Cylinder specification for master keying needs: 40mm single Euro profile cylinder, with rear face drill and tap fixing
Suitable for access points such as staff entries
Suitable for use with: 296, 294, 294A, 285, 284, 297, 293, 293A
Name | Value |
---|---|
Brand | Exidor |
Activation | Knob Handle |
Alarmed | No |
Bolt Style | Internal Bolts / Latches |
Dimensions (mm) | 100 X 130 X 220 |
Dogged | N/A |
Door Height (mm) | 2440 |
Door Opening | Outward |
Door Type | Plain Meeting Stile Double Either Leaf, Rebated Double Active Leaf, Single, Steel, Timber |
Durability | N/A |
Escape Hardware Feature | Outside Access Devices, Surface Mounted |
Escape Hardware Function | Shoot Bolt |
Fire Door Approval | Yes |
Fire Rated | Yes |
Fire Rated Metal | FD120, FD240 |
Fire Rated Timber | FD30, FD60 |
Fixings | N/A |
Handing | Universal |
Keep Detail | N/A |
Locking Points | 0 |
Max Door Height (mm) | 2440 |
Max Door Thickness (mm) | 46 To 51 |
Max Door Weight (kg) | 200kg |
Max Door Width (mm) | 1220 |
Micro Switched | N/A |
Mounting Method | Surface Mounted |
Operator Detail | Knob |
Product Subtitle | Unlock Safety With The Exidor 302 Knob Outside Access Device. Designed For 200 And 300 Series Hardware, This Compact Round Knob Allows Easy Entry Through Escape Doors. Choose With Or Without A Euro Cylinder, Ensuring Secure Access Control. Perfect For Steel Or Timber Doors, It Meets CE And Certifire Standards For Peace Of Mind. |
Projection (mm) | 70 |
Standard | CE, Certifire, EN 1125, EN 1634-1, EN 179, UKCA |
Style | Knob |
Suitable Door Type | Steel & Timber |
Feature | Outside Access Devices, Surface Mounted |
Function | Shoot Bolt |
Product | Product ID |
---|---|
302 Knob outside access device | 15000400 |
302 Knob outside access device | 15000410 |
302 Knob outside access device | 15000420 |
302 Knob outside access device | 15000452 |
302 Knob outside access device | 15000470 |
302 Knob outside access device | 15000473 |
302 Knob outside access device | 15001400 |
302 Knob outside access device | 15002400 |
302 Knob outside access device | 15004400 |
302 Knob outside access device | 15004420 |
302 Knob outside access device | 15006400 |
302 Knob outside access device | 15006420 |
302 Knob outside access device | 15092360 |
302 Knob outside access device | 15901930 |
302 Knob outside access device | 15901949 |
302 Knob outside access device | 15901950 |
302 Knob outside access device | 15907406 |
302 Knob outside access device | 15908402 |
302 Knob outside access device | 15908404 |
