UNION

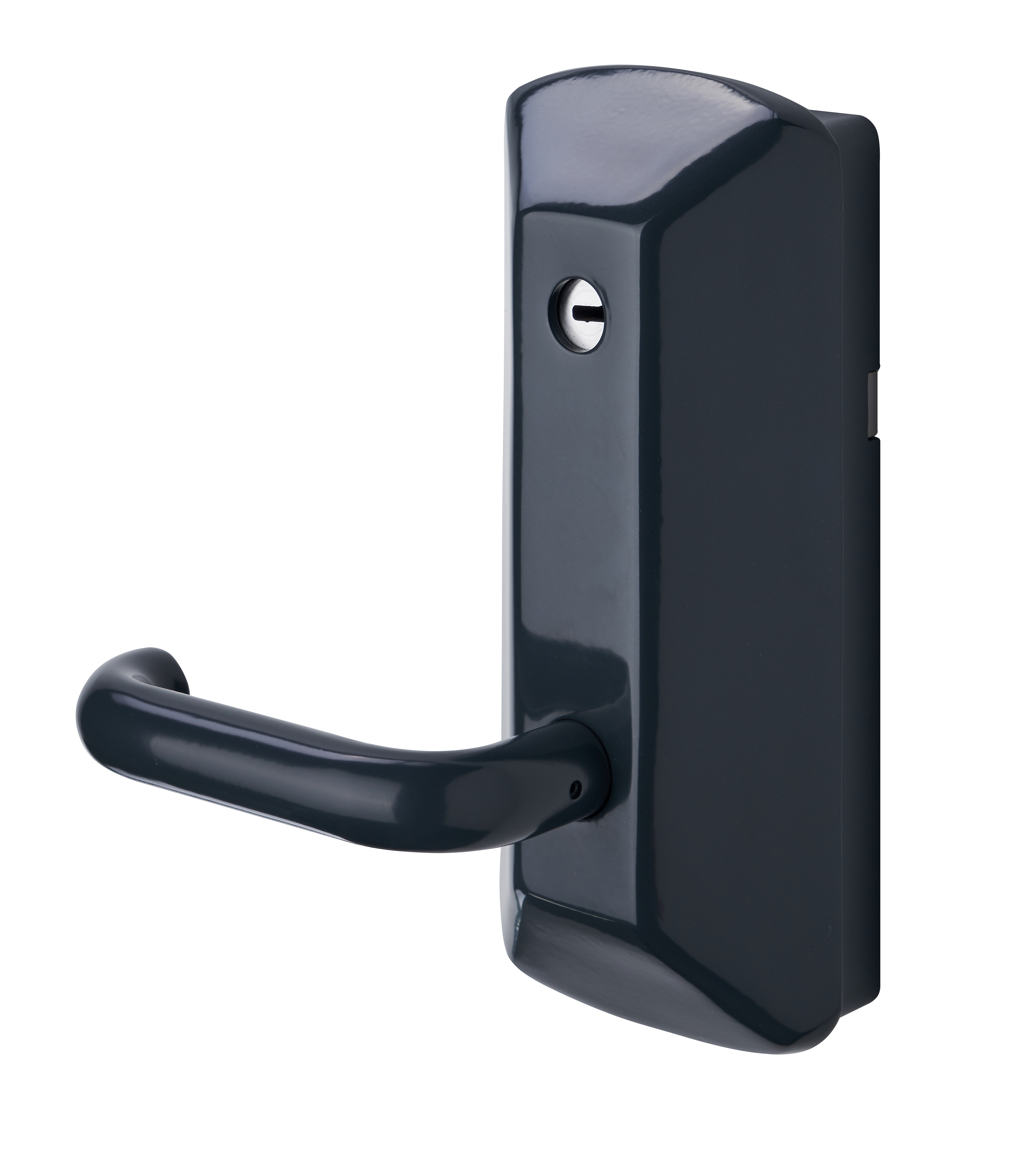

715 High security lever outside access device

Exidor high-security lever-operated outside access device for 700 series is the means to make an escape door an access door, ideal for additional entry points such as car park or smoking area access doors.  Principle attack areas are protected with high-security features and manufactured from stainless steel to help prevent force and drill attacks.  The unit is operated by pushing the lever down to retract the internal bolts/latches, releasing the lever returns the internal bolts/latches to the rest position. Available with or without a Euro cylinder. Locking the cylinder prevents access into the building but will not prevent escape from the building. Certified as an approved accessory to the 700 series hardware as part of EN 1125 and EN 179. Tested to LPS 1175 SR4 grade. Lever design helps meet the requirements of BS 8300 and Approved Document M, giving barrier-free access.

  • Brochures (for Webshop/AEM) S3

  • Attack areas are protected with high security features, vetted through LPS 1175 testing

    Lever profile helps meet requirements of BS 8300, giving access for all

    Surface mounted using concealed machine screws on the external face of doors up to 69mm thick

    Cylinder specification for master keying needs: 45mm Euro profile cylinder, with side face drill and tap fixing

    Suitable for use with 701B/30, 702B/30, 703B/30, 704B/30, 701BD/30, 702BD/30, 742BD/30, 743BD/30, 702L/30, 732L/30, 703L/30, 733L/30, 704L/30

  • NameValue
    BrandExidor
    ActivationLever Handle
    AlarmedNo
    Cylinder DetailEuro
    Cylinder IncludedYes
    Dimensions (mm)251 X 124 X 95
    DoggedNo
    Door Height (mm)2440
    Door OpeningInwards & Outwards
    Door TypeMetal, Rebated Double Active Leaf, Single, Timber
    Escape Hardware FeatureOutside Access Devices
    Escape Hardware FunctionLever Or Knob
    FinishAnthracite Grey
    Finish TypeGrey
    Fire Door ApprovalNo
    Fire RatedNo
    Fire Rated MetalNo
    Fire Rated TimberNo
    FixingsFixings Supplied
    HandingUniversal
    Locking Points0
    Max Door Height (mm)2440
    Max Door Thickness (mm)Up To 69
    Max Door Weight (kg)200kg
    Max Door Width (mm)1220
    Micro SwitchedNo
    Mounting MethodSurface Mounted
    Operation TypeManual
    Operator DetailLever
    Product SubtitleIntroducing The Exidor 715 High Security Lever Outside Access Device, Crafted From Durable Stainless Steel For Ultimate Protection Against Forced Entry. Ideal For Escape Doors In Car Parks Or Smoking Areas, Its Lever Design Ensures Easy Operation While Complying With Accessibility Standards. Secure Your Building Without Compromising Safety!
    Projection (mm)95mm
    StandardsBS 8300, CE, EN 1125, EN 179, LPS 1175, UKCA
    StyleLever
    Suitable Door TypeSteel & Timber
    Unit TypeAccessory
    FeatureOutside Access Devices
    FunctionLever Or Knob
  • ProductProduct IDAttributes
    715 High security lever outside access device15098501
    Key Retention: No
    715 High security lever outside access device15098531
    Key Retention: Yes

Similar products

  • 709 Knob outside access device

    Exidor knob operated outside access device for the external opening of an escape door fitted with 700 series hardware, suitable for occasionally used additional entry points such as building side entrances.  The unit is operated by rotating the knob to retract the internal bolts, releasing the knob returns the internal bolts to the rest position. Locking the cylinder prevents entry into the building without compromising the operation of internal escape hardware.  Available with cylinder for immediate locking or without cylinder should masterkeyed system be needed.  Incorporates cylinder protection to prevent manipulation. Locking the cylinder prevents access into the building but will not prevent escape from the building.  Certified as an approved accessory to the 700 series hardware as part of EN 1125 and EN 179 and suitable for use on fire doors.

  • 710 Lever outside access device

    Exidor easy and convenient lever-operated outside access device for the external opening of an escape door fitted with 700 Series hardware. Suitable for use on busy additional entry points such as car parks or smoking area access doors. The unit is operated by pushing the lever down to retract the internal bolts, releasing the lever returns the internal bolts to the rest position. Available with or without a Euro cylinder, the unit incorporates cylinder protection to prevent manipulation. Locking the cylinder prevents access into the building but will not prevent escape from the building. Certified as an approved accessory to the 700 series hardware as part of EN 1125 and EN 179, it is also tested to LPS 1175 SR2 grade. Lever design helps meet the requirements of BS 8300 and Approved Document M, giving barrier-free access.
