Compact design of external hardware for use with 200 and 300 series hardware
Bolt through fixings make it suitable for steel or timber doors up to 50mm thick
Cylinder specification for master keying needs: 40mm single Euro profile cylinder, with rear face drill and tap fixing
Suitable for access points such as staff entries
Suitable for use with: 296, 294, 294A, 285, 284, 297, 293, 293A
Name | Value |
---|---|
Brand | UNION |
Activation | Knob Handle |
Bolt Style | Internal Bolts / Latches |
Cylinder Detail | Euro |
Dimensions (mm) | 100 X 130 X 220 |
Dogged | N/A |
Door Height (mm) | 2440 |
Door Opening | Outward |
Door Type | Plain Meeting Stile Double Either Leaf, Rebated Double Active Leaf, Single, Steel, Timber |
Durability | N/A |
Escape Hardware Feature | Outside Access Devices |
Escape Hardware Function | Lever Or Knob |
Finish | Silver |
Finish Type | Silver |
Fire Door Approval | Yes |
Fire Rated | Yes |
Fire Rated Metal | FD120, FD240 |
Fire Rated Timber | FD120, FD30, FD60, FD90 |
Fixings | N/A |
Handing | Universal |
Locking Points | 0 |
Max Door Height (mm) | 2440 |
Max Door Thickness (mm) | 46 To 51 |
Max Door Weight (kg) | 200kg |
Max Door Width (mm) | 1220 |
Micro Switched | N/A |
Mounting Method | Surface Mounted |
Operator Detail | Knob |
Product Subtitle | Introducing The Exisafe Lever Outside Access Device, A Trusted Solution For Secure Entry From The Outside. This Versatile Device Is Available As A Knob Or Lever And Fits Both Timber Fire Doors (up To FD60) And Metal Fire Doors (up To FD240). Universal-handed And Compliant With BS 8300, It’s The Perfect Choice For Safety And Accessibility. |
Projection (mm) | 70 |
Standards | None |
Suitable Door Type | Steel & Timber |
Feature | Outside Access Devices |
Product | Product ID |
---|---|

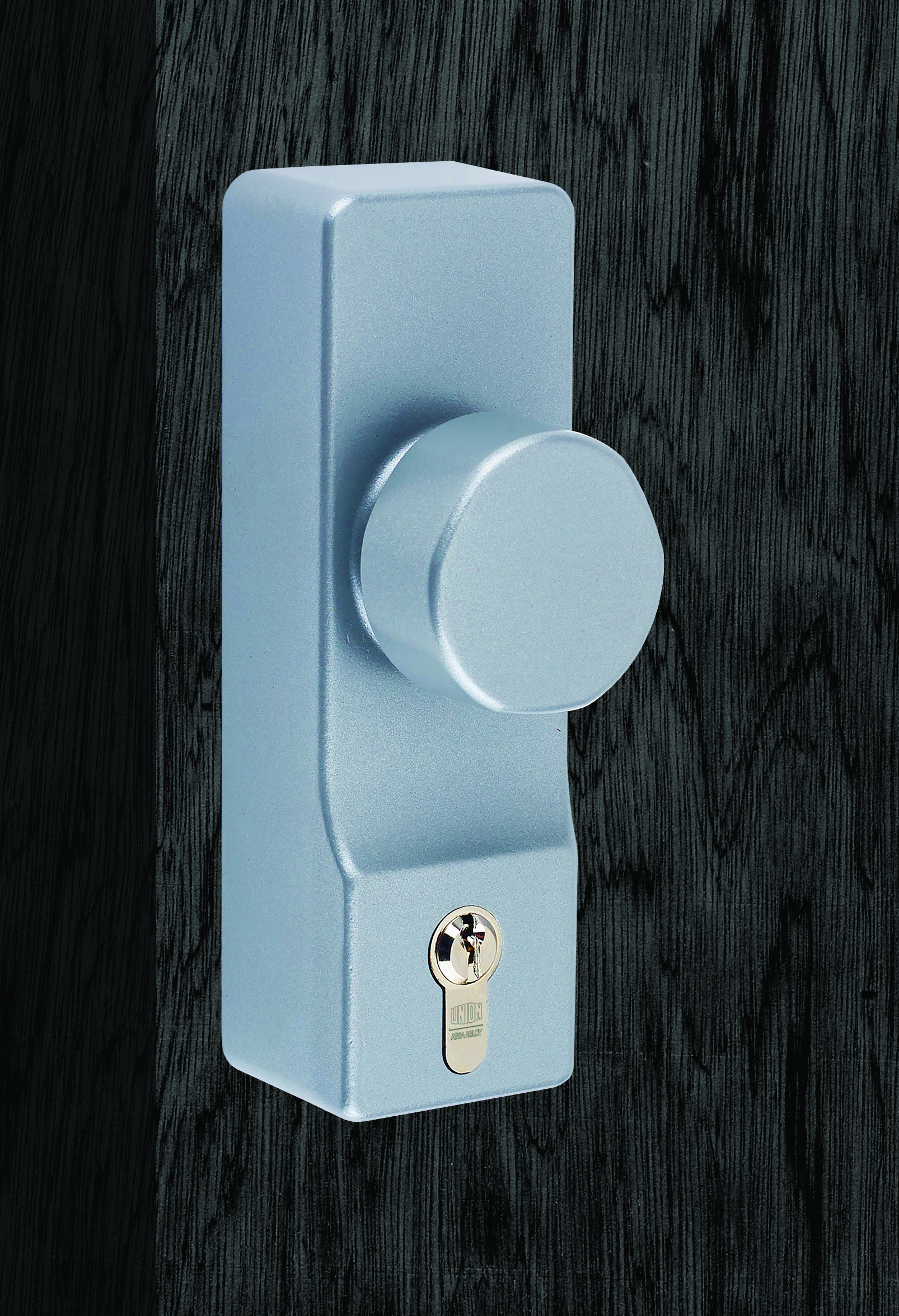

Exisafe knob outside access device | J-CE855OADK-SIL |
Exisafe knob outside access device | J-CE855OADKC-SIL |
Exisafe knob outside access device | J-CE855OADL-SIL |
Exisafe knob outside access device | J-CE855OADLC-SIL |
