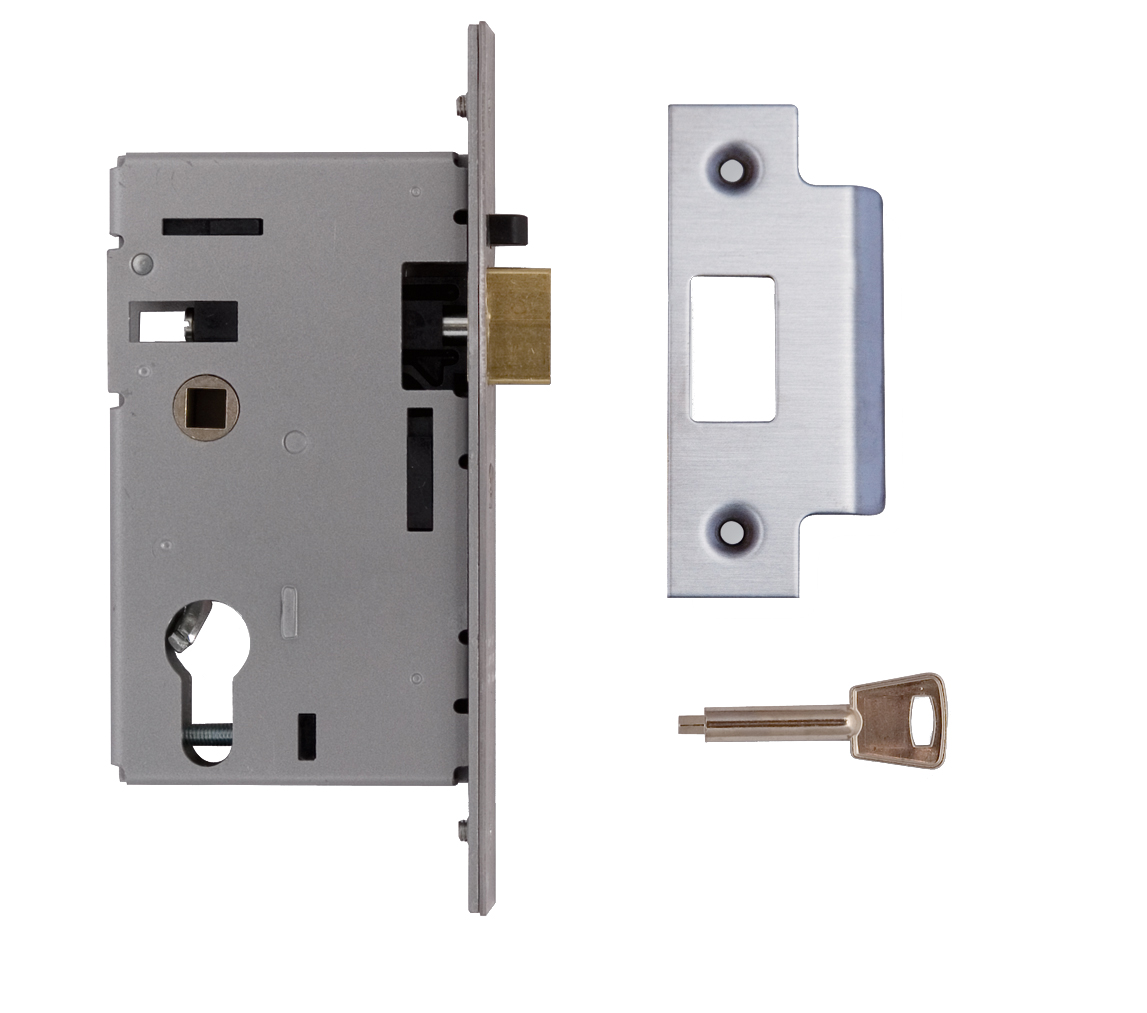

UNION L2349 Euro Profile Mortice Nightlatch

Our UNION L2349 euro profile mortice nightlatch, designed for use on timber doors hinged on the left or right. Also suited for steel and composite doors, but special fixings required.

Name	Value
Style	Mortice
Forend (mm)	25 X 180
Backset (mm)	57
Centres (mm)	47.5
Handing	Reversible
Function	Latch
Pack Qty	1
Warranty	10 Years
Faceplate	Flat

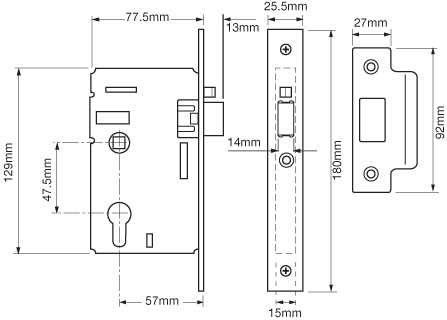

Dimensions (mm)	129 X 77.5 X 25.5
Fire Rated	Yes
Monitoring	No
Finish (Case)	Grey Powder Coat
Door Opening	Inwards & Outwards
Forend Style	Square / Flat
Package Type	Boxed
Backset (mm)	51mm - 60mm
Cylinder Type	Europrofile
Micro Switched	No
Cylinder Included	No
Follower Distance (mm)	8
Fire Door Approval	Yes
Latch & Deadbolt Finish	Brass
Standards	EN 1634-1
Faceplate Size (mm)	25 X 180
Fire Rated Metal	No
Fire Rated Timber	FD30, FD60
Type	Europrofile/ DIN Lockcases, Mortice
Function	Nightlatch

Product	Product ID	Attributes
UNION L2349 Euro Profile Mortice Nightlatch	JL2349-PL-3.00	Finish: Polished Brass
UNION L2349 Euro Profile Mortice Nightlatch	JL2349-SC-3.00	Finish: Satin Chrome
