High performance PowerLOAD 604 grade 11 half-leaf, lift off-hinges

The high performance PowerLOAD 604 grade 11 lift-off hinges feature a half leaf design to reduce the material removed from doors on installation, as well as carbon steel and phosphorous bronze flanged bearing bushes providing long life. The PowerLOAD hinge family are virtually mainteance free and supplied with a 25-year guarantee, and are suitable for timber fire doors FD30 and FD60* making this hinge family ideal for environments where durability and reliability are paramount. *Intumescent protection must be used

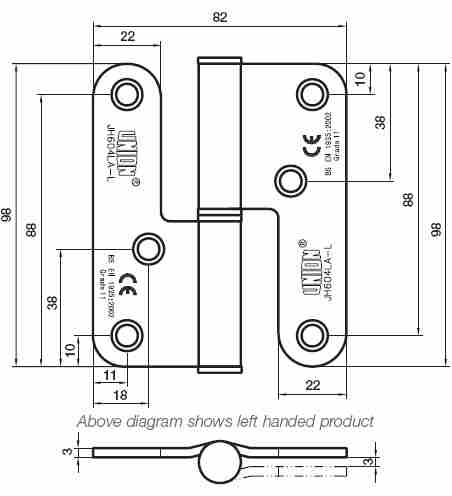

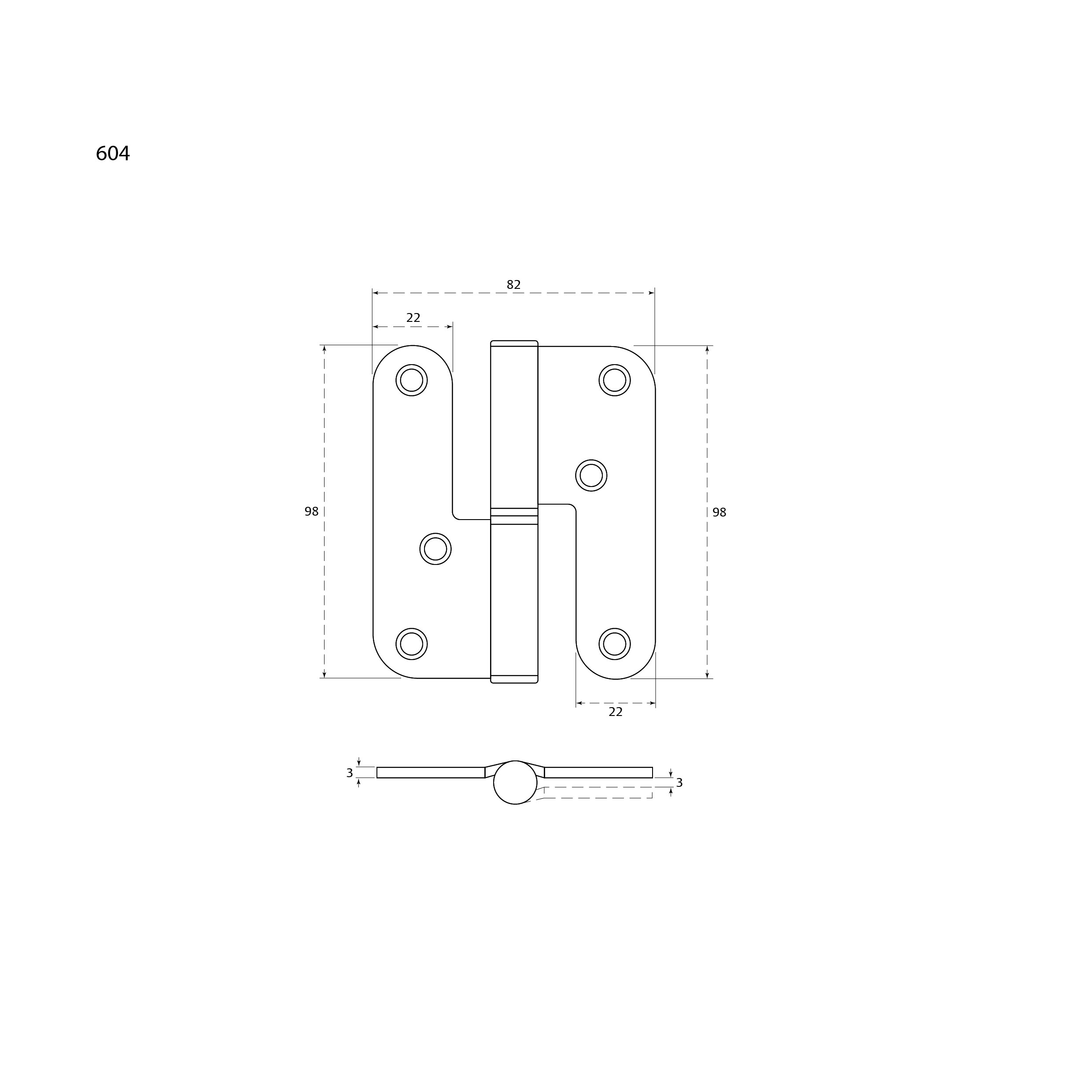

  • Dimensional Drawings (for Webshop/AEM/Priint) S3
    Declaration of Performance (for Webshop/AEM) S3
    Fitting Instructions (for Webshop/AEM) S3

  • Metal to metal wear and regular maintenance is significantly reduced by the carbon steel and phosphorous bronze flanged bearing bushes

    Phosphorous bronze ring offers a great looking finish and increases longevity

    Congruent fixing pattern spreads the load of the door more effectively within the timber

    Radius variants available, radius corner offers speed of fixing with machine tools

    Sold with both leaves together, without screws

  • NameValue
    BrandUNION
    Dimensions (mm)98 X 82 X 3
    Durability200000
    Fire Door ApprovalYes
    Fire Rated MetalNo
    Fire Rated TimberFD30, FD60
    Hinges MaterialMild Steel
    Hinges TypeLift Off Hinges
    Material304 Stainless Steel
    Max Door Weight (kg)80kg
    Max Door Weight (kg)Up To 100kg
    Min Door Thickness (mm)44
    Opening Angle180
    Pack Qty20
    Product SubtitleIntroducing The High Performance PowerLOAD 604, A Durable And Reliable Lift-off Hinge Designed For Timber Fire Doors. Crafted From Carbon Steel And Featuring Phosphorous Bronze Bearings, It Ensures Long-lasting Performance With Minimal Maintenance. Enjoy Peace Of Mind With A 25-year Guarantee, Perfect For Demanding Environments.
    StandardsCE, Certifire, EN 1935, UKCA
    StyleRadius Corner
    Number of cycles tested to200,000
    TypeLift Off Hinges
  • ProductProduct IDAttributes
    High performance PowerLOAD 604 grade 11 half-leaf, lift off-hingesJH604LALR-M-BZP
    Finish: Bright Zinc Plate
    Handing: Right
    High performance PowerLOAD 604 grade 11 half-leaf, lift off-hingesJH604LALR-M-SSF
    Finish: Satin Stainless Steel
    Handing: Left
    High performance PowerLOAD 604 grade 11 half-leaf, lift off-hingesJH604LARR-M-BZP
    Finish: Bright Zinc Plate
    Handing: Left
    High performance PowerLOAD 604 grade 11 half-leaf, lift off-hingesJH604LARR-M-SSF
    Finish: Satin Stainless Steel
    Handing: Right
