UNION

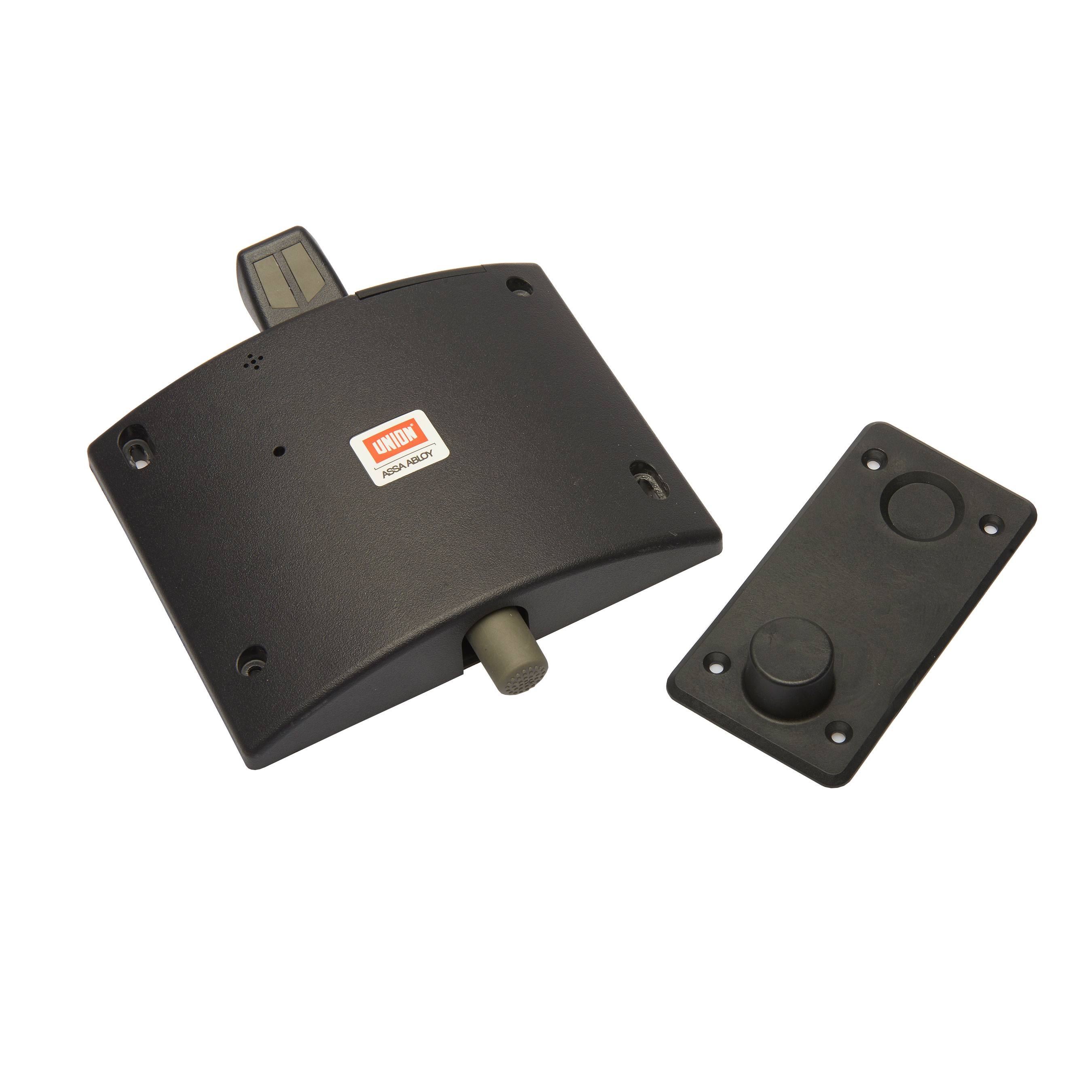

DoorSense

DoorSense holds your fire doors open, improving access around your building. If the fire alarm sounds, DoorSense automatically releases to let the door close.* It is quick and easy to install with no secondary installation costs, such as electrical wiring, and retrofits existing products. CE marked to EN 1155, EMC tested, and fire rated for timber doors (FD120), legally allows fire doors to be held open for easier access and sound tested over 50,000 times, so you can depend on it working. *A separate door closer must be installed. It is recommended DoorSense is used in conjunction with a professionally installed fire alarm system.
  • Brochures (for Webshop/AEM) S3

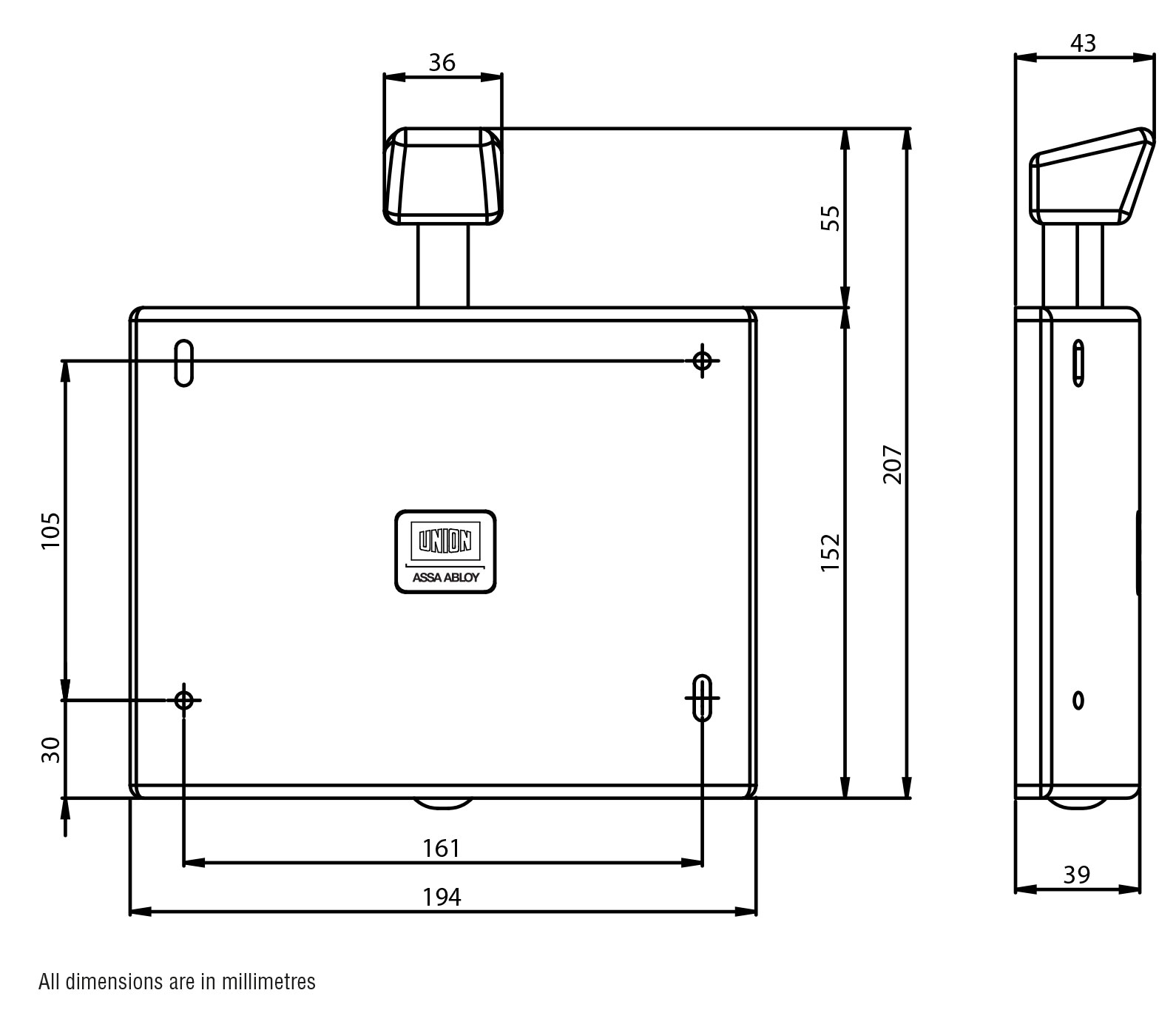

    Dimensional Drawings (for Webshop/AEM/Priint) S3
    Declaration of Performance (for Webshop/AEM) S3
    Fitting Instructions (for Webshop/AEM) S3

  • The safe and legal way to hold open fire doors

    Holds open doors fitted with a door closers

    Easy fit with no wiring

    Automatically releases when the fire alarm sounds

    2 x c batteries, included

    Automatic fail safe mode

    Timer function allowing doors to be released out of hours e.g. overnight

  • NameValue
    BrandUNION
    Anti SlamNo
    Arm SuppliedOrder Door Closer Separately
    BackcheckNo
    Cover IncludedYes
    Cover Trim PlateCover
    Delayed ActionNo
    Dimensions (mm)244 X 198 X 54
    Door Leaf MaterialTimber
    Door Leaf TypeActive Or Passive
    Door TypeSingle, Timber
    Double ActionNo
    Durability50000
    Fire Door ApprovalYes
    Fire RatedYes
    Fire Rated MetalNo
    Fire Rated TimberFD120
    FixingsFixings Supplied
    Force AdjustmentNo
    Free SwingNo
    Hold Open - ElectromechanicalNo
    Hold Open FunctionYes
    Hold Open - ManualYes
    Latching SpeedNo
    Max Closing ForceEN7
    Max Door Weight (kg)160kg
    Max Door Width (mm)1600mm
    MechanismDoorsense
    Min Closing ForceEN3
    Min Door Thickness (mm)44
    Mounting MethodSurface Mounted
    Package TypeBoxed
    Product SubtitleIntroducing DoorSense, The Safe And Legal Solution For Holding Fire Doors Open, Enhancing Access In Your Building. It Automatically Releases When The Fire Alarm Sounds, Ensuring Safety. Easy To Install With No Wiring Needed, It Retrofits Existing Products. Trust DoorSense For Reliable Performance And Compliance.
    SecurityNo
    Single ActionYes
    StandardsCE, EN 1155, EN 1634-1, UKCA
    FunctionHold Open - Manual, Single Action
  • ProductProduct IDAttributes

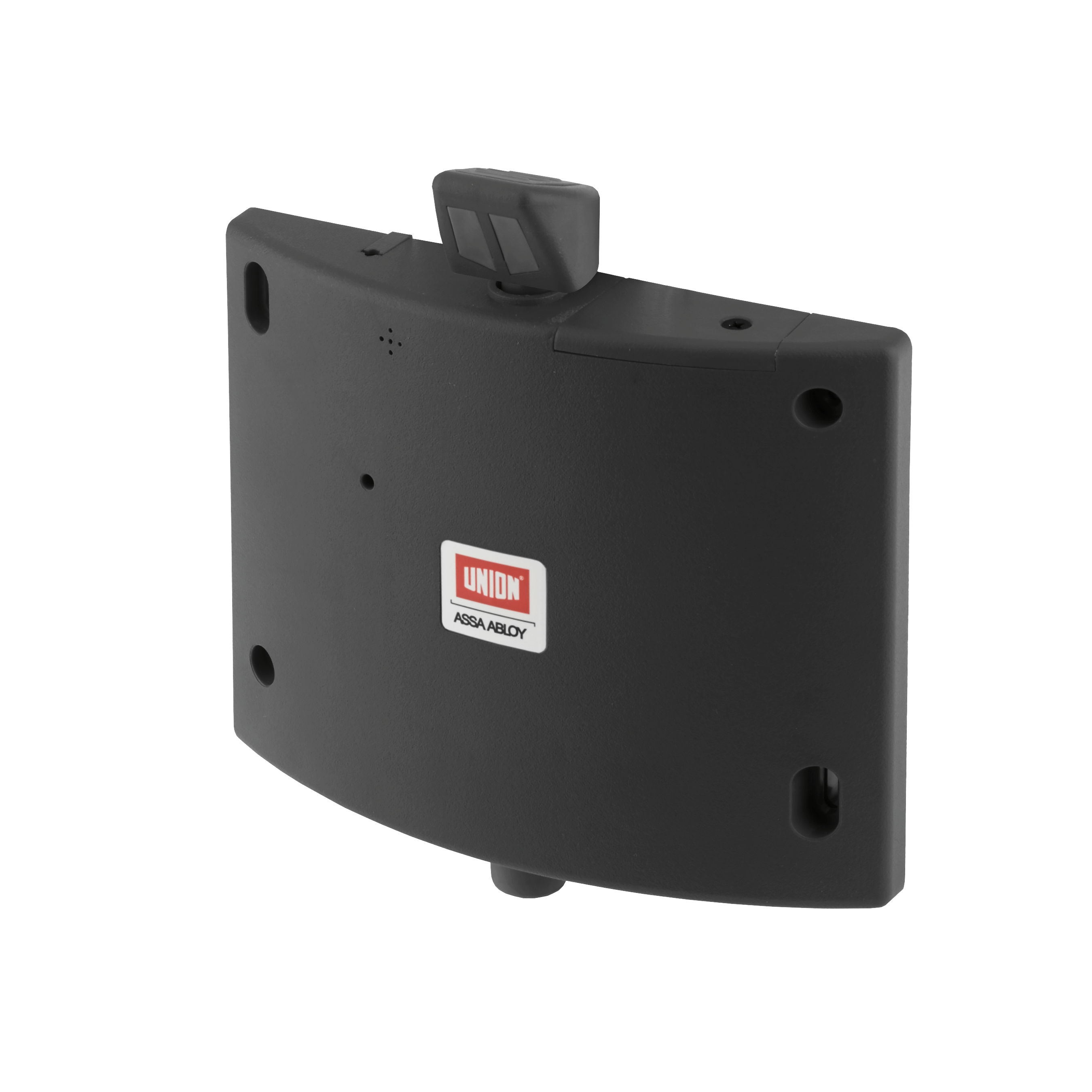

    DoorSenseJ-8755A-BLACK
    Finish: Black
    DoorSenseJ-8755A-RED
    Finish: Red
    DoorSenseJ-8755A-WHITE
    Finish: White
