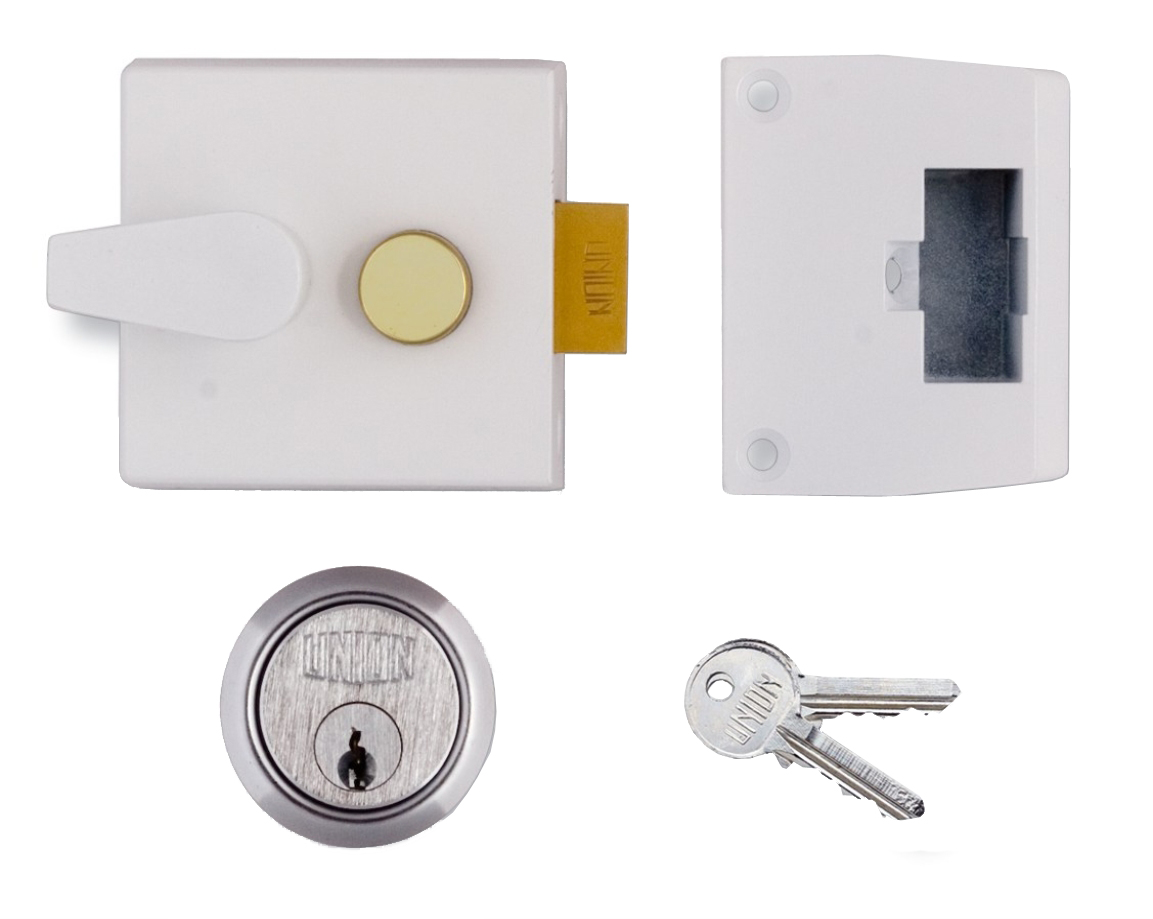

1026 / L1026 narrow stile cylinder night latch

1026/L1036 narrow stile cylinder night latch for timber doors from 35­60mm thick, hinged on the left or right and opening inwards only.


  • Concealed fixing
  • Not recommended for glass panelled doors
  • Also suitable for steel and composite doors ­- special fixings required
  • The bolt is withdrawn by key outside and handle inside
  • Master keyed products supplied with nickel silver keys ­ order JM1X1 cylinder separately
  • The bolt may be held in the locked or in the withdrawn position by operating the snib
  • Available Boxed or Visi Packed
  • To pass products ­order JP1X1 cylinder separately
  • Supplied with 2 steel nickel plated keys as standard


Backset: 50mm

Case & Keep: Zinc

Latch Bolt: Anodised Brass finish

Handle:  Zinc, finished to match case and keep material

Outside Cylinder: Brass, 5 pin tumbler mechanism

Inside Cylinder: n/a

Keying Groups: May be supplied to pass, differ & master keyed.

Key Blank Number: KB8­NP

Finish: CG ­- Champagne Gold, EB ­- Enamel Brass, SC ­- Satin Chrome, WE ­- White Enamel, PL ­- Polished Brass, CH - Chrome
