UNION

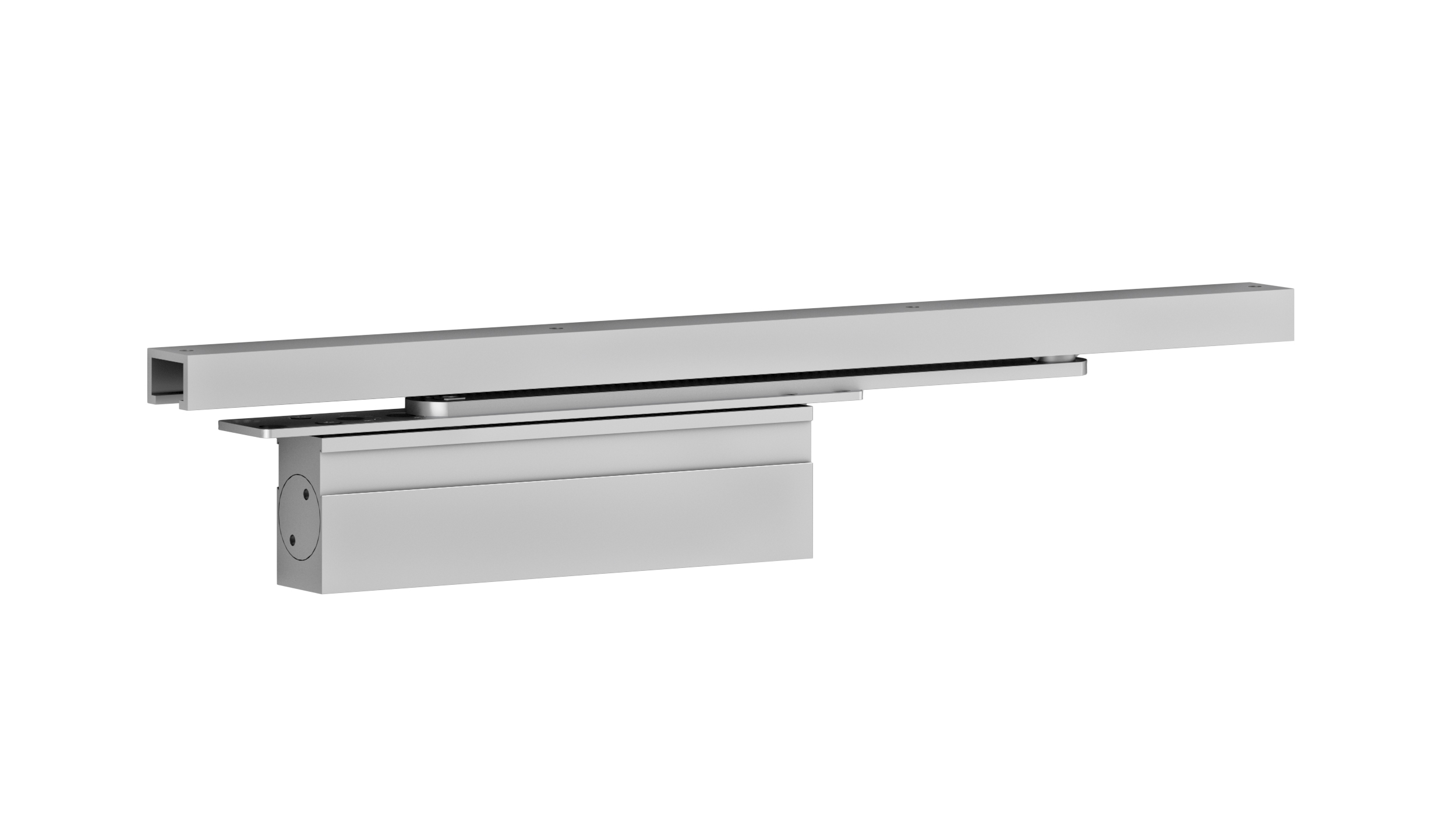

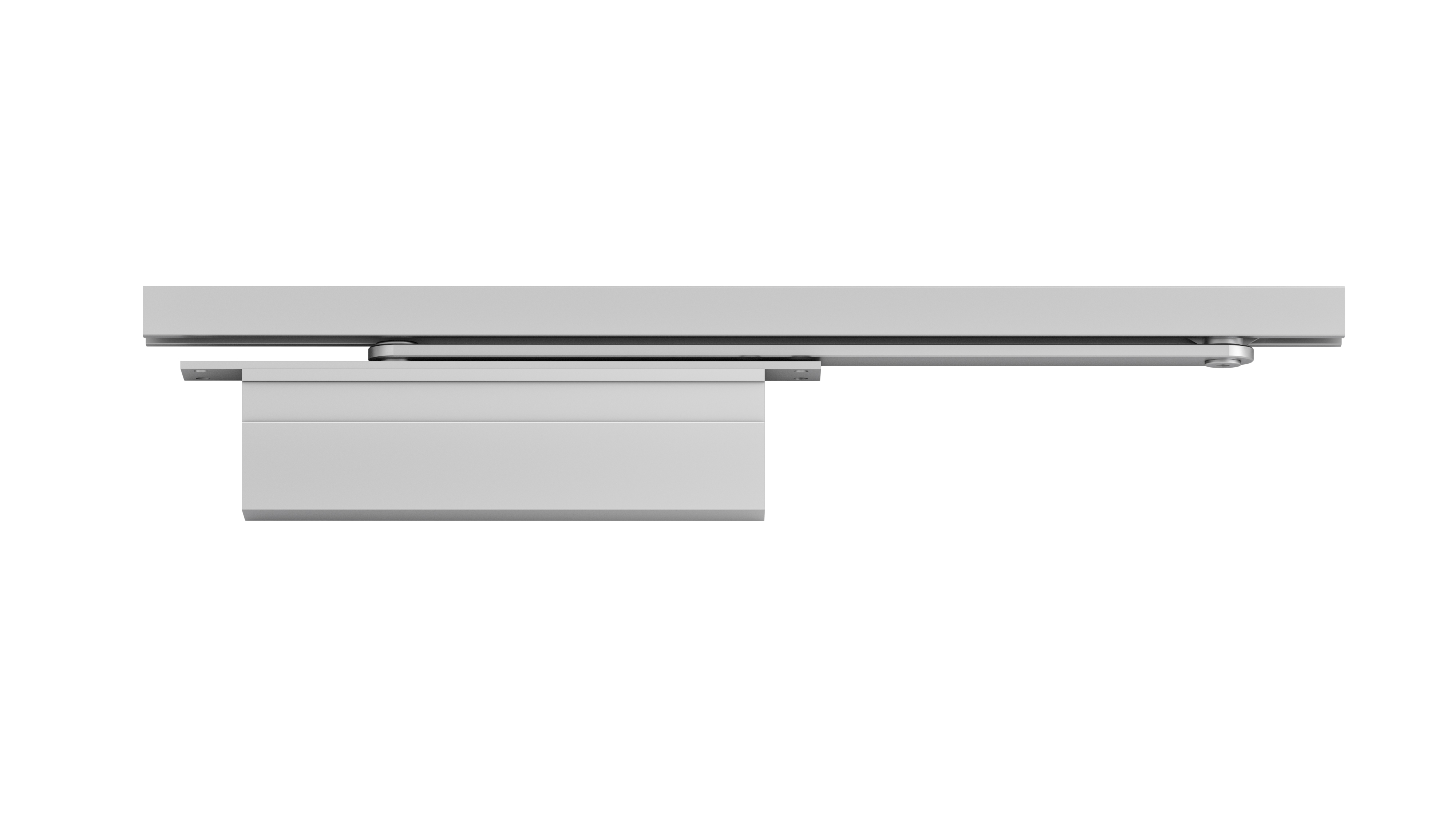

SC-CE3F EN 3 door closer

The SC-CE3F is a concealed cam action door closer with a fixed power size of EN 3. It has been designed with adjustable closing and latching speed and is ideal in environments where superior aesthetics are needed or reduced vandalism. Thanks to its slimline profile it also is quick to install. A guide rail dampener is available to purchase with the SC-CE3F. It has also been tested to UKCA, EN 1154, and fire rated for timber doors FD30 and FD60 as well as metal doors up to FD240. However, it must be fitted with the appropriate intumescent for fire door applications.

  • Brochures (for Webshop/AEM) S3
    Dimensional Drawings (for Webshop/AEM/Priint) S3
    Fitting Instructions (for Webshop/AEM) S3

  • Ideal for applications where the aesthetics are paramount

    Slimline profile for quicker installation

    High efficiency cam action mechanism for ease of opening, assisting the overall doorset in meeting the requirements of BS 8300

    Mechanical hold open and damper accessory available

    Adjustable closing and latching speed.

  • NameValue
    BrandUNION
    EAN code5011802368101
    Range NameUNION
    Warranty (Years)10
    Anti SlamNo
    Arm SuppliedGuide Rail
    BackcheckNo
    Cover Trim PlateCover
    Delayed ActionNo
    Door Leaf MaterialTimber & Metal
    Double ActionNo
    FinishSilver
    Finish TypeSilver
    Fire Door ApprovalYes
    Fire RatedYes
    Fire Rated MetalFD240
    Fire Rated TimberFD120
    Force AdjustmentNo
    Free SwingNo
    Height Adjustable Arm System14
    Hold Open - ElectromechanicalNo
    Hold Open FunctionYes
    Hold Open - ManualYes
    Latching SpeedYes
    Max Closing ForceEN3
    Max Door Weight (kg)60kg
    Max Door Width (mm)950mm
    Max Opening Angle130°
    Max Opening Angle Hinge Side120°
    MechanismCam Action
    Min Closing ForceEN3
    Min Door Thickness (mm)44
    Mounting MethodConcealed
    Package TypeBoxed
    Product SubtitleIntroducing The SC-CE3F EN 3 Door Closer By UNION. This Sleek, Concealed Cam Action Closer Features Adjustable Closing And Latching Speeds, Perfect For Spaces Where Aesthetics Matter. Its Slimline Design Ensures Quick Installation, While Its High-efficiency Mechanism Enhances Ease Of Use. Ideal For Both Timber And Metal Doors.
    SecurityNo
    Single ActionYes
    SKUSC-CE3F
    SKU codeSC-CE3F
    StandardsBS 8300, CE, Certifire, EN 1154, EN 1634-1
    FunctionHold Open - Manual, Single Action
