UNION

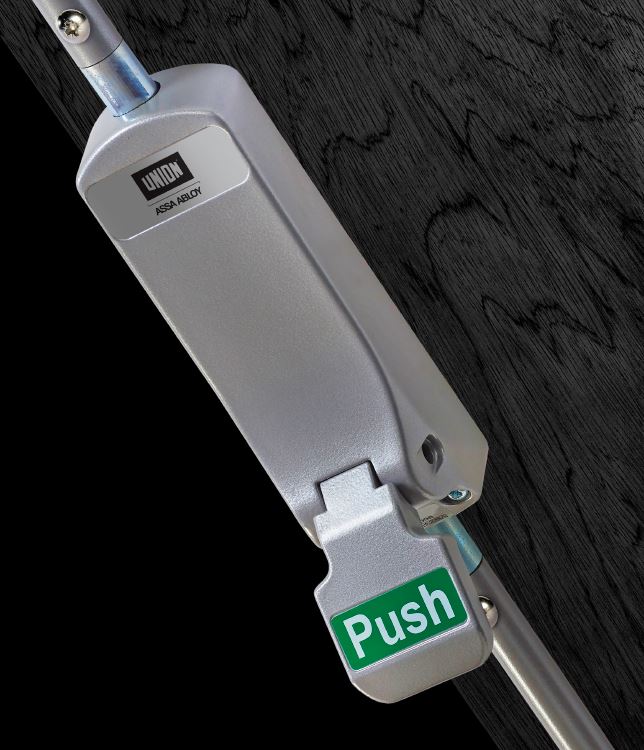

Exisafe CE858 emergency device

The Exisafe CE858 push pad surface-mounted emergency bolt device is for use on single doors or as part of a double-door solution.

It's ideal for final exit escape doors where all users are familiar with the building and hardware. The push pad is for install to the push face of outward opening doors with the design of the push pad being discrete for a tidier option.

It offers an automatic top trip that releases the bolts only as the door closes into the frame, preventing damage to the frame and flooring. The top and bottom shoot bolt rods can be cut to size on-site to fit each door.

It is tested to EN 179 and up to FD120 on timber doors and FD240 on metal doors.

  • Brochures (for Webshop/AEM) S3
    Dimensional Drawings (for Webshop/AEM/Priint) S3

  • Anti thrust features in the main mechanism to prevents the top and bottom shoot bolts being pushed out of the keeps to force the door open.

    Can be used on timber fire doors (up to FD120) or metal fire doors up to (FD240) up to 1200mm x 2440mm tall

    96 hours corrosion resistance

    Completed 200,000 cycles in durability testing

    Slim line design projects less than 100mm from door face

  • NameValue
    BrandUNION
    Door Height (mm)2440
    FinishSilver
    Finish TypeSilver
    Fire Rated MetalFD240
    Fire Rated TimberFD120
    Product SubtitleIntroducing The Exisafe CE858 Emergency Device, A Discreet Push Pad Solution For Single Or Double Doors. Ideal For Final Exit Doors, It Features Anti-thrust Technology And An Automatic Top Trip To Prevent Damage. Suitable For Timber And Metal Fire Doors, It Offers 96 Hours Of Corrosion Resistance. Stay Safe And Secure!
    StandardsCertifire, EN 1634-1, EN 179, UKCA
  • ProductProduct IDAttributes
    Exisafe CE858 emergency deviceJ-CE858EB-SIL
    Fixings: Timber Door
    Exisafe CE858 emergency deviceJ-CE858EBM-SIL
    Fixings: Metal Door
