UNION
  • ExiSAFE panic and emergency hardware
  • Outside access devices

ExiSAFE CE855 knob and lever outside access devices

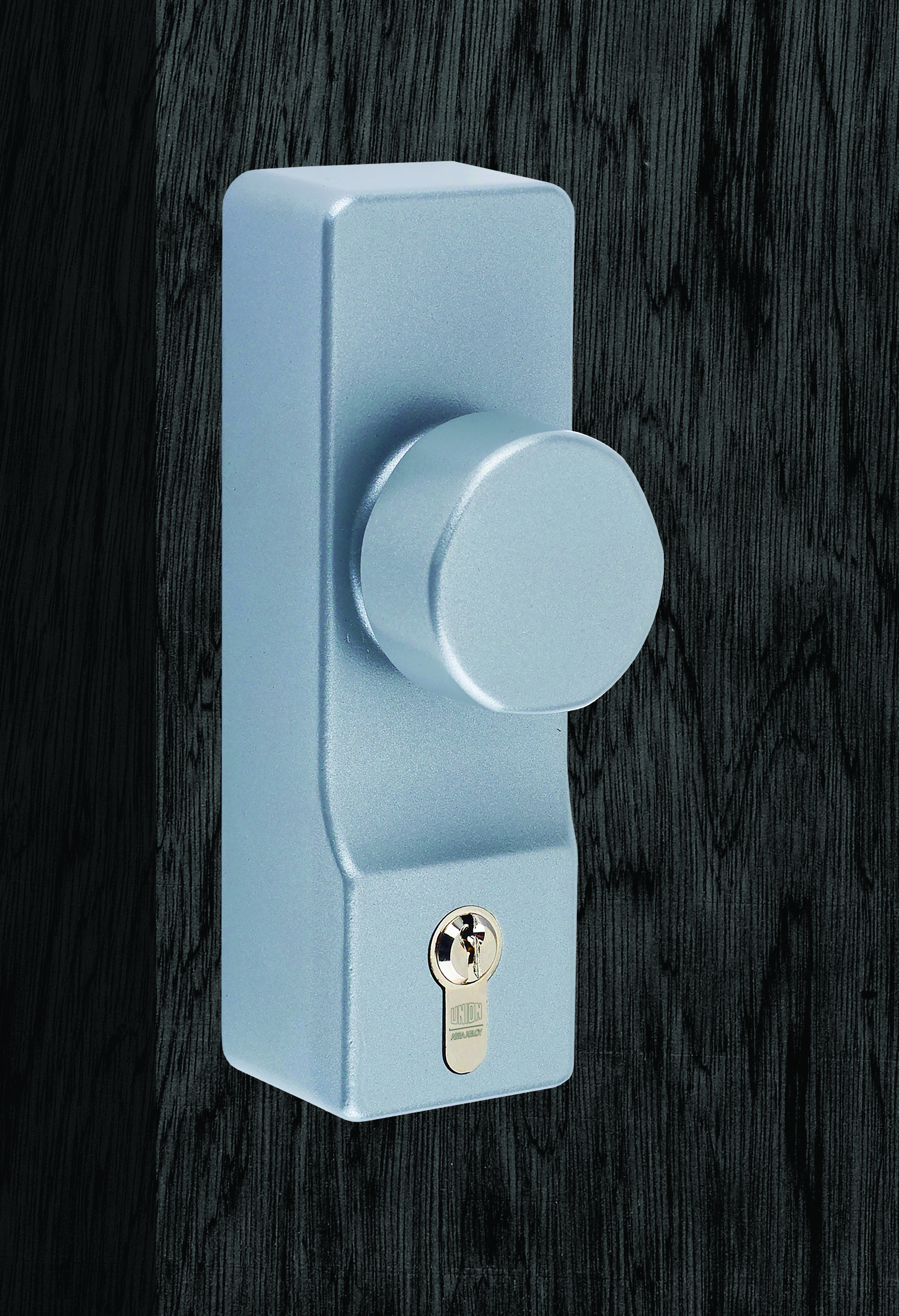

ExiSAFE round knob outside access device for use with 200 series and 300 series hardware, for gaining entry through an escape door. The unit is operated by rotating the knob to retract the internal bolts/latches, releasing the knob returns the internal bolts/latches to the rest position. Available with or without a Euro cylinder. Key retention option available (Suffix order code with “RK” for key retention). Locking the cylinder prevents access into the building but will not prevent escape from the building. Certified as an approved accessory to the ExiSAFE range as part of EN 1125 and EN 179. Certifire approval when used as an accessory to the ExiSAFE range. Indicate the required finish when ordering (plated finishes are not recommended for external use). Additional fixings for thicker doors are available on request.

Compact design of external hardware for use with 200 and 300 series hardware

Bolt through fixings make it suitable for steel or timber doors up to 50mm thick

Cylinder specification for master keying needs: 40mm single Euro profile cylinder, with rear face drill and tap fixing

Suitable for access points such as staff entries

Suitable for use with: 296, 294, 294A, 285, 284, 297, 293, 293A

NameValue
DoggedNo
FinishSilver
HandingUniversal
Warranty2 Years
ActivationKnob Handle
Bolt StyleInternal Bolts / Latches
Dimensions (mm)100 X 130 X 220
Projection (mm)70
Device TypeOutside Access Device
Finish TypeSilver
Door OpeningOutward
Locking Points0
Max Door Width (mm)1220mm
Micro SwitchedNo
Cylinder DetailEuro
Max Door Height (mm)2440mm
Max Door Weight (kg)200kg
Mounting MethodSurface Mounted
Fire Door ApprovalYes
Max Door Thickness (mm)46 To 51
Max Door Weight (kg)101kg To 200kg
Suitable Door MaterialSteel & Timber
StandardsNone
Door TypePlain Meeting Stile Double Either Leaf, Rebated Double Active Leaf, Single, Steel, Timber
FeatureOutside Access Devices
FunctionCentral Latch/ Lock
ProductProduct IDAttributes
ExiSAFE CE855 knob and lever outside access devicesJ-CE855OADK-SIL
Operator Detail: Knob
Cylinder Included: No
ExiSAFE CE855 knob and lever outside access devicesJ-CE855OADKC-SIL
Operator Detail: Knob
Cylinder Included: Yes
ExiSAFE CE855 knob and lever outside access devicesJ-CE855OADL-SIL
Operator Detail: Lever
Cylinder Included: No
ExiSAFE CE855 knob and lever outside access devicesJ-CE855OADLC-SIL
Operator Detail: Lever
Cylinder Included: Yes
